Product Details

Description



Features:

 HIGH-SPEED 16-BIT PARALLEL DOUBLEBUFFERED INTERFACE
 VOLTAGE OUTPUT: 0 to +10V
 13-, 14-, 15-BIT LINEARITY GRADES
 16-BIT MONOTONIC OVER TEMPERATURE (L GRADE)
 POWER DISSIPATION: 600mW max
 GAIN AND OFFSET ADJUST: Convenient for Auto-Cal D/A Converters
 28-LEAD DIP AND SOIC PACKAGES

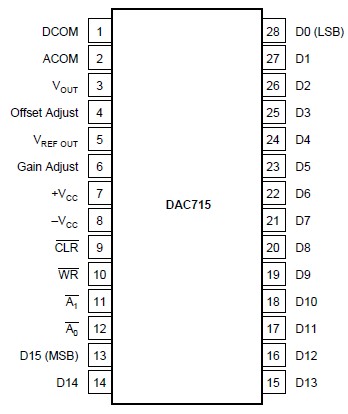

Pinout

Connection Diagram


Specifications

+VCC to COMMON ...................................................................... 0V, +17V
VCC to COMMON ...................................................................... 0V, 17V
+VCC to VCC ..................................................................................... 34V
Digital Inputs to COMMON ..................................................... 1V to +VCC
External Voltage Applied to BPO and Range Resistors ..................... ±VCC
VREF OUT ....................................................... Indefinite Short to COMMON
VOUT ............................................................. Indefinite Short to COMMON
Power Dissipation .......................................................................... 750mW
Storage Temperature ...................................................... 60°C to +150°C
Lead Temperature (soldering, 10s) ................................................ +300°C


Description

The DAC715 is a complete monolithic digital-toanalog converter including a +10V temperature compensated reference, current-to-voltage amplifier, 16-bit parallel interface that is double buffered, and an asynchronous clear function which immediately sets the output voltage to one-half of full-scale.

The output voltage range of DAC715 is 0 to +10V while operating from ±12V or ±15V supplies. The gain and bipolar offset adjustments are designed so that they can be set via external potentiometers or external D/A converters. The output amplifier is protected against short circuit to ground.

The 28-pin DAC715 is available in a 0.3" plastic DIP and wide-body plastic SOIC package. The DAC715P, U, PB, and UB are specified over the 40°C to +85°C temperature range while the DAC715PK, UK, PL, and UL are specified over the 0°C to +70°C range.
