DAC714

Features: SERIAL DIGITAL INTERFACEVOLTAGE OUTPUT: ±10V, ±5V, 0 to +10V±1 LSB INTEGRAL LINEARITY16-BIT MONOTONIC OVER TEMPERATUREPRECISION INTERNAL REFERENCELOW NOISE: 120nV/ÖHz Including Reference16-LEAD PLASTIC AND CERAMIC SKINNY DIP AND PLASTIC SOIC PACKAGESPinoutSpecifications+VCC to Commo...

product image

DAC714 Picture
See larger image
SeekIC No. : 004323725 Detail

DAC714: Features: SERIAL DIGITAL INTERFACEVOLTAGE OUTPUT: ±10V, ±5V, 0 to +10V±1 LSB INTEGRAL LINEARITY16-BIT MONOTONIC OVER TEMPERATUREPRECISION INTERNAL REFERENCELOW NOISE: 120nV/ÖHz Including Refere...

DAC714 Data Sheet

floor Price/Ceiling Price

Get Latest Price
Part Number:
DAC714
Supply Ability:
5000

Price Break

  • Qty
  • 1~5000
  • Unit Price
  • Negotiable
  • Processing time
  • 15 Days
Total Cost: $ 0.00

SeekIC Buyer Protection PLUS - newly updated for 2013!

  • Escrow Protection.
  • Guaranteed refunds.
  • Secure payments.
  • Learn more >>

Month Sales

268 Transactions

Rating

evaluate  (4.8 stars)

Upload time: 2024/10/20

add to my favourite

Payment Methods

All payment methods are secure and covered by SeekIC Buyer Protection PLUS.

Notice: When you place an order, your payment is made to SeekIC and not to your seller. SeekIC only pays the seller after confirming you have received your order. We will also never share your payment details with your seller.
Product Details

Description



Features:

 SERIAL DIGITAL INTERFACE
 VOLTAGE OUTPUT: ±10V, ±5V, 0 to +10V
 ±1 LSB INTEGRAL LINEARITY
 16-BIT MONOTONIC OVER TEMPERATURE
 PRECISION INTERNAL REFERENCE
 LOW NOISE: 120nV/ÖHz Including Reference
 16-LEAD PLASTIC AND CERAMIC SKINNY
  DIP AND PLASTIC SOIC PACKAGES


Pinout

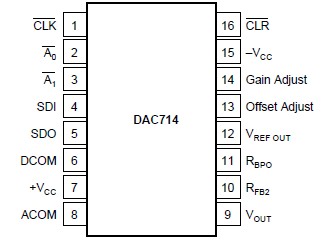

Connection Diagram


Specifications

+VCC to Common .................................................................... 0V to +17V
VCC to Common .................................................................... 0V to 17V
+VCC to VCC ....................................................................................... 34V
ACOM to DCOM ............................................................................... ±0.5V
Digital Inputs to Common ............................................. 1V to (VCC 0.7V)
External Voltage Applied to BPO and Range Resistors ..................... ±VCC
VREF OUT ......................................................... Indefinite Short to Common
VOUT ............................................................... Indefinite Short to Common
SDO ............................................................... Indefinite Short to Common
Power Dissipation .......................................................................... 750mW
Storage Temperature ...................................................... 60°C to +150°C
Lead Temperature (soldering, 10s) ................................................ +300°C


Description

The DAC714 is a complete monolithic digital-toanalog converter including a +10V temperature compensated reference, current-to-voltage amplifier, a high-speed synchronous serial interface, a serial output which allows cascading multiple converters, and an asynchronous clear function which immediately sets the output voltage to midscale.

The output voltage range of DAC714 is ±10V, ±5V, or 0 to +10V while operating from ±12V or ±15V supplies. The gain and bipolar offsetadjustments are designed so that they can be set via external potentiometers or external D/A converters. The output amplifier is protected against short circuit to ground.

The 16-pin DAC714 is available in a plastic 0.3" DIP, ceramic 0.3" CERDIP, and wide-body plastic SOIC package. The DAC714P, U, HB, and HC are specified over the 40°C to +85°C temperature range while the DAC714HL is specified over the 0°C to +70°C range.
