Description



Features:

 HIGH-SPEED 16-BIT PARALLEL DOUBLEBUFFERED INTERFACE
 VOLTAGE OUTPUT: ±10V
 13-, 14-, AND 15-BIT LINEARITY GRADES
 16-BIT MONOTONIC OVER TEMPERATURE (L GRADE)
 POWER DISSIPATION: 600mW max
 GAIN AND OFFSET ADJUST: Convenient for Auto-Cal D/A Converters
 28-LEAD DIP AND SOIC PACKAGES


Pinout

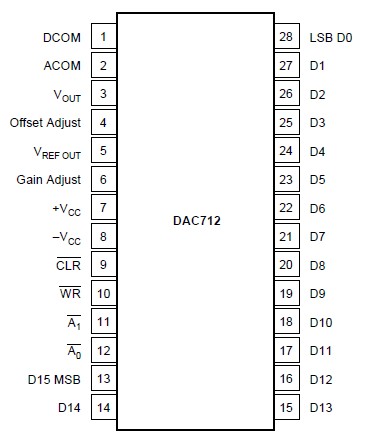

Connection Diagram


Specifications

+VCC to COMMON ....................................................................... 0V, +17V
VCC to COMMON ...................................................................... 0V, 17V
+VCC to VCC ..................................................................................... 34V
Digital Inputs to COMMON .......................................... 1V to +VCC 0.7V
External Voltage Applied to BPO and Range Resistors .................... ±VCC
VREF OUT ...................................................... Indefinite Short to COMMON
VOUT ............................................................ Indefinite Short to COMMON
Power Dissipation ........................................................................ 750mW
Storage Temperature .................................................. 60°C to +150°C
Lead Temperature (soldering, 10s) ............................................ +300°C


Description

DAC712 is a complete 16-bit resolution D/A converter with 16 bits of monotonicity over temperature. DAC712 has a precision +10V temperature compensated voltage reference, ±10V output amplifier and 16-bit port bus interface.

The digital interface is fast, 60ns minimum write pulse width, is double-buffered and has a CLEAR function that resets the analog output to bipolar zero.

GAIN and OFFSET adjustment inputs are arranged so that they can be easily trimmed by external D/A converters as well as by potentiometers.

DAC712 is available in two linearity error performance grades: ±4LSB and ±2LSB and three differential linearity grades: ±4LSB, ±2LSB, and ±1LSB. The DAC712 is specified at power supply voltages of ±12V and ±15V.

DAC712 is packaged in a 28-pin 0.3" wide plastic DIP and in a 28-lead wide-body plastic SOIC. The DAC712P, U, PB, UB, are specified over the 40°C to +85°C temperature range and the DAC712PK, UK, PL, UL are specified over the 0°C to +70°C range.
