DAC5688

(1) Stresses beyond those listed under absolute maximum ratings may cause permanent damage to the device. These are stress ratings only, and functional operation of these or any other conditions beyond those indicated under recommended operating conditions is not implied. Exposure to absolute-maximum-rated conditions for extended periods may affect device reliability.
(2) Measured with respect to GND.

The DAC5688 is a dual-channel 16-bit 800 MSPS  Input Data digital-to-analog converter (DAC) with dual CMOS  adigitfainl edatafrebquuse,nicnytegrmatiexedr2x-w8ixthinte3r2p-obliat tiocnofmiltpelresx,  numerically controlled oscillator (NCO), on-board  clock multiplier, IQ compensation, and internal voltage reference. Different modes of operation enable or bypass various signal processing blocks. The DAC5688 offers superior linearity, noise,  crosstalk and PLL phase noise performance.

 The DAC5688 dual CMOS data bus provides 250  MSPS input data transfer per DAC channel. Several  input data options are available: dual-bus data, single-bus interleaved data, even and odd  multiplexing at half-rate, and an input FIFO with either  external or internal clock to ease interface timing.

Interface Input data can interpolated 2x, 4x or 8x by on-board  sdtigoipta-bl ainndtearpttoelnautiantgionF.IR filters with over 80 dB of The DAC5688 allows both complex or real output. An optional 32-bit NCO/mixer in complex mode provides frequency upconversion and the dual DAC output produces a complex Hilbert Transform pair. A digital   Inverse SINC filter compensates for natural DAC  Sin(X)/X frequency roll-off. The digital adrature  cMoomdpuelantsoar  ioCnoorrfepchtioanse, (gQaMinCa)ndfeoaftfusreet toalmloawxsimizIQe  sideband rejection and minimize LO feed-through of  an external quadrature modulator performing the final single sideband RF up-conversion.

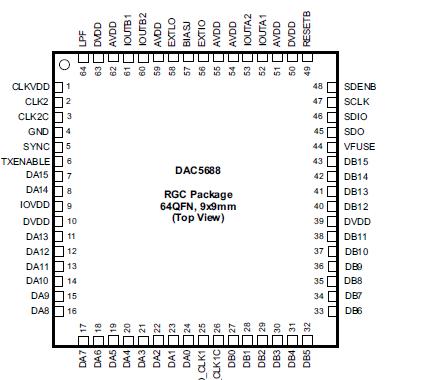

The DAC5688 is characterized for operation over the industrial temperature range of -40°C to 85°C and is available in a 64-pin 9x9mm QFN package.
