Features: • 12-Bit Dual Transmit DAC• 200 MSPS Update Rate• Single Supply: 3.0 V - 3.6 V• High SFDR: 85 dBc at 5 MHz• High IMD3: 78 dBc at 15.1 and 16.1 MHz• WCDMA ACLR: 70 dB at 30.72 MHz• Independent or Single Resistor Gain Control• Dual or Interle...
DAC5662: Features: • 12-Bit Dual Transmit DAC• 200 MSPS Update Rate• Single Supply: 3.0 V - 3.6 V• High SFDR: 85 dBc at 5 MHz• High IMD3: 78 dBc at 15.1 and 16.1 MHz• WCDM...
SeekIC Buyer Protection PLUS - newly updated for 2013!
268 Transactions
All payment methods are secure and covered by SeekIC Buyer Protection PLUS.
US $.48 - .55 / Piece
DAC (D/A Converters) Auto Cat 8B Sgl Ch 80uA 1.8-5.5V DAC
UNIT | ||
Supply voltage range | AVDD (2) | -0.5 V to 4 V |
DVDD (3) | -0.5 V to 4 V | |
Voltage between AGND and DGND | -0.5 V to 0.5 V | |
Voltage between AVDD and DVDD | -0.5 V to 0.5 V | |
Supply voltage range | DA[11:0] and DB[11:0](3) | -0.5 V to DVDD + 0.5 V |
MODE, CLKA, CLKB, WRTA, WRTB(3) | -0.5 V to DVDD + 0.5 V | |
IOUTA1, IOUTA2, IOUTB1, IOUTB2(2) | -0.5 V to DVDD + 0.5 V | |
EXTIO, BIASJ_A, BIASJ_B, SLEEP(2) | -0.5 V to DVDD + 0.5 V | |
Peak input current (any input) | +20 mA | |
Peak total input current (all inputs) | -30 mA | |
Operating free-air temperature range | -40 to 85 | |
Storage temperature range | -65 to 150 | |
Lead temperature 1,6 mm (1/16 inch) from the case for 10 | 260 |
The DAC5662 is a monolithic, dual-channel 12-bit high-speed digital-to-analog converter (DAC) with on-chip voltage reference.
WRTB WRTA CLKB CLKA Operating with update rates of up to 200 MSPS, the DAC5662 offers exceptional dynamic performance and tight-gain and offset matching, characteristics that make it suitable in either I/Q baseband or direct IF communication applications.
Each DAC has a high-impedance differential current output, suitable for single-ended or differential analog-output configurations. External resistors allow scaling the full-scale output current for each DAC separately or together, ypically between 2 mA and 20 mA. An accurate on-chip voltage reference is temperature compensated and delivers a stable 1.2-V reference voltage. Optionally, an external reference may be used.
BIASJ_A The DAC5662 has two 12-bit parallel input ports with separate clocks and data latches. For flexibility, the DAC5662 also supports multiplexed data for each DAC on one port when operating in the interleaved mode.
The DAC5662 has been specifically designed for a differential transformer coupled output with a 50- Ω doubly terminated load. For a 20-mA full-scale output current a 4:1 impedance ratio (resulting in an output power of 4 dBm) and 1:1 impedance ratio transformer (-2 dBm output power) are supported.

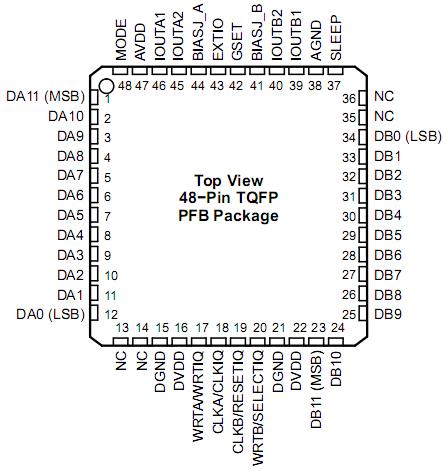

The DAC5662 is available in a 48-pin thin quad FlatPack (TQFP). Pin compatibility between family members provides 12-bit (DAC5662) and 14-bit (DAC5672) resolution. Furthermore, the DAC5662 is pin compatible to the DAC2902 and AD9765 dual DACs. The device is characterized for operation over the industrial temperature range of -40 ° C to 85 ° C.
