DA24CM

Features: ·800 Watts Peak Pulse Power per Line (tp=8/20µs)·Unidirectional & Bidirectional Configuration·ESD Protection > 40 kilovolts·Available in 5V, 12V, 15V & 24V·Standard Dual-In-Line Package·Protects 4 to 6 LinesApplication·Low Frequency I/O Ports·RS-232 & RS-423 Data Lin...

product image

DA24CM Picture
See larger image
SeekIC No. : 004323598 Detail

DA24CM: Features: ·800 Watts Peak Pulse Power per Line (tp=8/20µs)·Unidirectional & Bidirectional Configuration·ESD Protection > 40 kilovolts·Available in 5V, 12V, 15V & 24V·Standard Dual-I...

DA24CM Data Sheet

floor Price/Ceiling Price

Get Latest Price
Part Number:
DA24CM
Supply Ability:
5000

Price Break

  • Qty
  • 1~5000
  • Unit Price
  • Negotiable
  • Processing time
  • 15 Days
Total Cost: $ 0.00

SeekIC Buyer Protection PLUS - newly updated for 2013!

  • Escrow Protection.
  • Guaranteed refunds.
  • Secure payments.
  • Learn more >>

Month Sales

268 Transactions

Rating

evaluate  (4.8 stars)

Upload time: 2024/12/25

add to my favourite

Payment Methods

All payment methods are secure and covered by SeekIC Buyer Protection PLUS.

Notice: When you place an order, your payment is made to SeekIC and not to your seller. SeekIC only pays the seller after confirming you have received your order. We will also never share your payment details with your seller.
Product Details

Description



Features:

·800 Watts Peak Pulse Power per Line (tp=8/20µs)
·Unidirectional & Bidirectional Configuration
·ESD Protection > 40 kilovolts
·Available in 5V, 12V, 15V & 24V
·Standard Dual-In-Line Package
·Protects 4 to 6 Lines


Application

·Low Frequency I/O Ports
·RS-232 & RS-423 Data Lines
·Power Bus Lines
·Monitoring & Industrial Signal and Data Ports
·Microprocessor Based Equipment

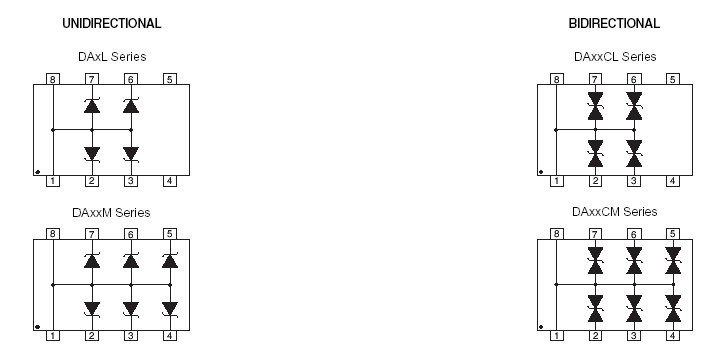

Pinout

Connection Diagram


Specifications

PARAMETER SYMBOL VALUE UNITS
Peak Pulse Power (tp = 8/20µs) - See Figure 1 PPP 800 Watts
Operating Temperature TJ -55 to 150
Storage Temperature TSTG -55 to 150
Forward Surge Rating (See Note 1) IF 10 Amps
