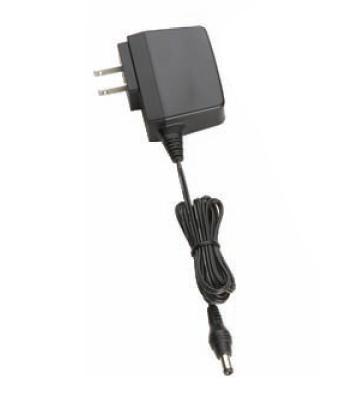

DA12-120US-M

Mounting Style : Wall
Number of Outputs : 1
Output Current (Channel 1) : 1 A
Efficiency : Level V
Region : North America
Input Voltage Range : 90 VAC to 264 VAC
Output Voltage (Channel 1) : 12 V
DC Output Connector : 2.5 mm Barrel Plug
Commercial/Medical : Commercial, Medical
AC Plug included/required : Included
Output Power Rating : 12 W


Description

The DA12-120US-M has some points of features:(1)Medical and ITE Safeties; (2)Switching wallmount power supply; (3)Available in multiple ac plug configurations; (4)CE Mark EMC & LVD; (5)Universal AC input; (6)Fully regulated output; (7)Overload and short circuit protection; (8)Thermal protection; (9)Energy Star and CeC approvals; (10)Constant voltage; (11)High efficiency; (12)High MTBF; (13)Built in EMI filter (CISPR 22 Class B).

And the electrical specifications of the DA12-120US-M are:(1)Input range: 90 - 264 VAC (wide range);(2)Frequency: 47-63 Hz;(3)EMI/RFI: FCC Part 15, Subpart B Class B & EN55022 (CISPR 22) Class B;(4)Safety ground leakage current: 100 A @ 50/60 Hz, 264 Vac input;(5)Voltage (Vo): 12.0 Vdc;(6)Maximum Power (Po): 12 W;(7)Hold-up time: 10 ms. typical at full load @ 230 Vac. If you want to know more information about DA12-120US-M, please download the datasheet in www.seekic.com or www.chinaicmart.com .
