D602

Features: Low Phase Noise, -141dBc/Hz at 1kHz offset Single Supply Voltage, 2.7 - 4.0 V Low Power Consumption, 42mW Power Down Mode, 0.2µA Compatible with common PLL synthesizer ICs8-Pin Plastic SOIC Package Application 5GHz WLAN, IEEE 802.11a and HIPERLAN VSAT at 3.6 to 4.2 GHz Satellite...

product image

D602 Picture
See larger image
SeekIC No. : 004323407 Detail

D602: Features: Low Phase Noise, -141dBc/Hz at 1kHz offset Single Supply Voltage, 2.7 - 4.0 V Low Power Consumption, 42mW Power Down Mode, 0.2µA Compatible with common PLL synthesizer ICs8-Pin Plas...

D602 Data Sheet

floor Price/Ceiling Price

Get Latest Price
Part Number:
D602
Supply Ability:
5000

Price Break

  • Qty
  • 1~5000
  • Unit Price
  • Negotiable
  • Processing time
  • 15 Days
Total Cost: $ 0.00

SeekIC Buyer Protection PLUS - newly updated for 2013!

  • Escrow Protection.
  • Guaranteed refunds.
  • Secure payments.
  • Learn more >>

Month Sales

268 Transactions

Rating

evaluate  (4.8 stars)

Upload time: 2024/11/20

add to my favourite

Payment Methods

All payment methods are secure and covered by SeekIC Buyer Protection PLUS.

Notice: When you place an order, your payment is made to SeekIC and not to your seller. SeekIC only pays the seller after confirming you have received your order. We will also never share your payment details with your seller.
Product Details

Description



Features:

  Low Phase Noise, -141dBc/Hz at 1kHz offset
  Single Supply Voltage, 2.7 - 4.0 V
  Low Power Consumption, 42mW
  Power Down Mode, 0.2µA
 Compatible with common PLL synthesizer ICs
 8-Pin Plastic SOIC Package


Application

  5GHz WLAN, IEEE 802.11a and HIPERLAN
  VSAT at 3.6 to 4.2 GHz
  Satellite Communications at 4.5 to 4.8 GHz
  5 Gbps Clock Generator


Pinout

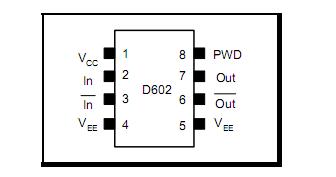

Connection Diagram


Specifications

Symbol Parameter Min. Max. Unit
Supply Voltage
-0.3
+4.3
V
Voltage on any pin with respect to VEE
−0.3
VCC + 0.3
V
 Differential input voltage
-2.0
+2.0
V
Storage Temperature
-65
+150



Description

The D602 is a SiGe divide-by-2 low noise static prescaler capable of operation up to 6.0 GHz. The D602 operates over a wide range of input frequencies and levels, and provides differential outputs for low noise operation with the common PLL style frequency synthesizer ICs.
The static nature of the prescaler prevents spurious generation.
The D602 prescaler can operate from either a single positive or single negative supply with power down mode for low standby power consumption.
