D5CC-D1

Features: • Ultra compact and light package (0.14cm3, 9.5 × 7.5 × 2.0 (h) mm Typ.)• External matching circuits are not required.• Surface mount package (SMT)• High handling power resistance (1.2 W Max.)PinoutSpecifications Parameter Symbol Rating Unit Min Max ...

product image

D5CC-D1 Picture
See larger image
SeekIC No. : 004323381 Detail

D5CC-D1: Features: • Ultra compact and light package (0.14cm3, 9.5 × 7.5 × 2.0 (h) mm Typ.)• External matching circuits are not required.• Surface mount package (SMT)• High handling p...

D5CC-D1 Data Sheet

floor Price/Ceiling Price

Get Latest Price
Part Number:
D5CC-D1
Supply Ability:
5000

Price Break

  • Qty
  • 1~5000
  • Unit Price
  • Negotiable
  • Processing time
  • 15 Days
Total Cost: $ 0.00

SeekIC Buyer Protection PLUS - newly updated for 2013!

  • Escrow Protection.
  • Guaranteed refunds.
  • Secure payments.
  • Learn more >>

Month Sales

268 Transactions

Rating

evaluate  (4.8 stars)

Upload time: 2025/2/15

add to my favourite

Payment Methods

All payment methods are secure and covered by SeekIC Buyer Protection PLUS.

Notice: When you place an order, your payment is made to SeekIC and not to your seller. SeekIC only pays the seller after confirming you have received your order. We will also never share your payment details with your seller.
Product Details

Description



Features:

• Ultra compact and light package (0.14cm3, 9.5 × 7.5 × 2.0 (h) mm Typ.)
• External matching circuits are not required.
• Surface mount package (SMT)
• High handling power resistance (1.2 W Max.)


Pinout

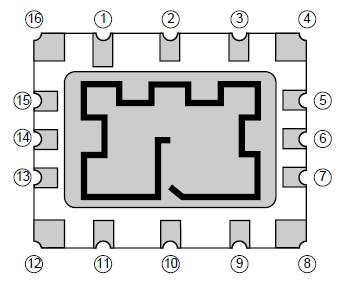

Connection Diagram


Specifications

Parameter Symbol Rating Unit
Min Max
Operating temperature Ta -30 +85 °C
Storage temperature Tstg -40 +100 °C
Maximum input power PIN - 1.2 W
Input DC voltage - -5 +5 V


WARNING: Piezoelectric devices can be permanently damaged by application of stress (voltage, current, temperature, etc.) in excess of absolute maximum ratings. Do not exceed these ratings.




Description

The D5CC series of SAW antenna duplexer apply to the frequency range 700 to 1000 MHz.

The SAW filters are fabricated on a piezoelectric-crystal unit (LiTaO3:lithium tantalate) with a large electromechanical dissociation.

The D5CC series provides small size and light duplexer by using original design, mounting and electrode formation techniques.

D5CC(D1) series are incorporated transmitter filter and receiver filter into a small package and are housed phase circuit in the package. Moreover, I/O of SAW filter is set to impedance 50 W, so application requires no external circuits.
