D1209UK

Features: • SIMPLIFIED AMPLIFIER DESIGN• SUITABLE FOR BROAD BAND APPLICATIONS• VERY LOW Crss• SIMPLE BIAS CIRCUITS• LOW NOISE• HIGH GAIN 10 dB MINIMUMApplication• HF/VHF/UHF COMMUNICATIONS from 1 MHz to 500 MHzPinoutSpecifications PD Power Dissipati...

product image

D1209UK Picture
See larger image
SeekIC No. : 004321097 Detail

D1209UK: Features: • SIMPLIFIED AMPLIFIER DESIGN• SUITABLE FOR BROAD BAND APPLICATIONS• VERY LOW Crss• SIMPLE BIAS CIRCUITS• LOW NOISE• HIGH GAIN 10 dB MINIMUMApplication...

D1209UK Data Sheet

floor Price/Ceiling Price

Get Latest Price
Part Number:
D1209UK
Supply Ability:
5000

Price Break

  • Qty
  • 1~5000
  • Unit Price
  • Negotiable
  • Processing time
  • 15 Days
Total Cost: $ 0.00

SeekIC Buyer Protection PLUS - newly updated for 2013!

  • Escrow Protection.
  • Guaranteed refunds.
  • Secure payments.
  • Learn more >>

Month Sales

268 Transactions

Rating

evaluate  (4.8 stars)

Upload time: 2024/11/20

add to my favourite

Payment Methods

All payment methods are secure and covered by SeekIC Buyer Protection PLUS.

Notice: When you place an order, your payment is made to SeekIC and not to your seller. SeekIC only pays the seller after confirming you have received your order. We will also never share your payment details with your seller.
Product Details

Description



Features:

• SIMPLIFIED AMPLIFIER DESIGN
• SUITABLE FOR BROAD BAND APPLICATIONS
• VERY LOW Crss
• SIMPLE BIAS CIRCUITS
• LOW NOISE
• HIGH GAIN 10 dB MINIMUM


Application

• HF/VHF/UHF COMMUNICATIONS from 1 MHz to 500 MHz

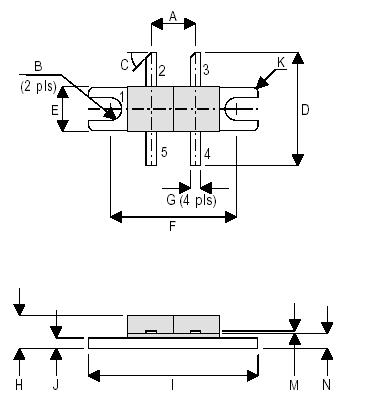

Pinout

Connection Diagram


Specifications

PD Power Dissipation 100W
BVDSS Drain Source Breakdown Voltage * 40V
BVGSS Gate Source Breakdown Voltage * ±20V
ID(sat) Drain Current * 10A
Tstg Storage Temperature 65 to 150°C
Tj Maximum Operating Junction Temperature 200°C



Description

The ceramic portion of the D1209UK between leads and metal flange is beryllium oxide. Beryllium oxide dust is highly toxic and care must be taken during handling and mounting to avoid damage to this area.
