Product Details

Description



Features:

• SIMPLIFIED AMPLIFIER DESIGN
• SUITABLE FOR BROAD BAND APPLICATIONS
• LOW Crss
• SIMPLE BIAS CIRCUITS
• LOW NOISE
• HIGH GAIN 13 dB MINIMUM


Application

• HF/VHF/UHF COMMUNICATIONS from 1 MHz to 200 MHz


Pinout

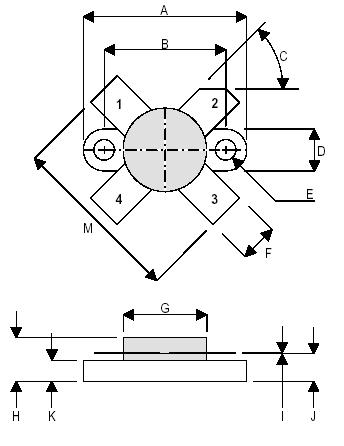

Connection Diagram


Specifications

PD Power Dissipation 220W
BVDSS Drain-source breakdown voltage 70V
BVGSS Gate-source breakdown voltage ±20V
ID(sat) Drain Current 30A
Tstg Storage temperature -65 to 150°C
Tj Maximum operating junction temperature 200°C



Description

The ceramic portion of the D1017UK between leads and metal flange is beryllium oxide. Beryllium oxide dust is highly toxic and care must be taken during handling and mounting to avoid damage to this area.
