CYW2338

Features: • Operating voltage 2.7V to 5.5V• Operating frequency to 2.5 GHz on PLL1 and 1.1 GHz on PLL2 with prescaler ratios of 64/65 and 128/129• Lock detect feature• Power-down mode ICC < 1 µA typical at 3.0V• Serial data input accepts data clock rates as l...

product image

CYW2338 Picture
See larger image
SeekIC No. : 004320708 Detail

CYW2338: Features: • Operating voltage 2.7V to 5.5V• Operating frequency to 2.5 GHz on PLL1 and 1.1 GHz on PLL2 with prescaler ratios of 64/65 and 128/129• Lock detect feature• Power-...

CYW2338 Data Sheet

floor Price/Ceiling Price

Get Latest Price
Part Number:
CYW2338
Supply Ability:
5000

Price Break

  • Qty
  • 1~5000
  • Unit Price
  • Negotiable
  • Processing time
  • 15 Days
Total Cost: $ 0.00

SeekIC Buyer Protection PLUS - newly updated for 2013!

  • Escrow Protection.
  • Guaranteed refunds.
  • Secure payments.
  • Learn more >>

Month Sales

268 Transactions

Rating

evaluate  (4.8 stars)

Upload time: 2024/12/25

add to my favourite

Payment Methods

All payment methods are secure and covered by SeekIC Buyer Protection PLUS.

Notice: When you place an order, your payment is made to SeekIC and not to your seller. SeekIC only pays the seller after confirming you have received your order. We will also never share your payment details with your seller.
Product Details

Description



Features:

• Operating voltage 2.7V to 5.5V
• Operating frequency to 2.5 GHz on PLL1 and 1.1 GHz on PLL2 with prescaler ratios of 64/65 and 128/129
• Lock detect feature
• Power-down mode ICC < 1 µA typical at 3.0V
• Serial data input accepts data clock rates as low as 1 kHz
• Low power/voltage operation with low current standby mode
• On-chip reference oscillator
• Available in a 20-pin TSSOP (Thin Shrink Small Outline Package)
• Available in a 24-pin CSP (Chip Scale Package)
• Available in a 20-pin MLF (Mirco Lead Frame Package)


Application

The Cypress CYW2338 is a dual serial input PLL frequency synthesizer designed for high performance dual conversion TV, VCR, and Set-top tuner sections, as well as downstream receivers for cable modems. The CYW2338 is also well suited for high-volume, low-cost wireless communications applications.
One 2.5-GHz and 1.1-GHz prescaler, each with pulse swallow capability are included. The device operates from 2.7V and dissipates only 27 mW.


Pinout

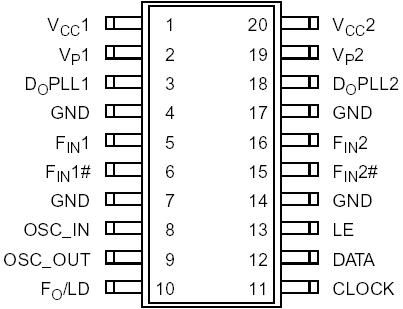

Connection Diagram


Specifications

Parameter Description Rating Unit
VCC or VP Power Supply Voltage 0.5 to +6.5 V
VOUT Output Voltage 0.5 to VCC+0.5 V
IOUT Output Current ±15 mA
TL Lead Temperature +260 °C
TSTG Storage Temperature 55 to +150 °C
