CYG2110

Mounting Style :
Control Voltage Range :
Load Voltage Rating :
Load Current Rating :
Contact Form :
Output Device :
Package / Case :
Product Type : PCB Mount


Features:

·Low distortion transformer signal coupling (0.01% max)
·Complete ring detector circuit
·Low power hookswitch
·Electronic inductor/gyrator circuit
·Surge protection
·V.32 bis /V.34 compatible
·PTT and safety regulations in 15 countries
·PC board mountable
·FCC Compatible


Application

·Home medical devices
·Plant monitoring equipment
·Security/alarm systems
·Utility meters
·Modems
·Voicemail systems
·Vending machines
·Elevator control boxes
·Network routers
·PBX Systems
·PC mother boards
·Telephony applications
·Digital telephone answering machines

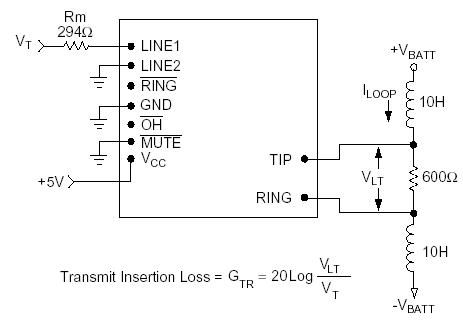

Pinout




Specifications

Parameter	Min	Typ	Max	Units
Isolation Voltage	-	-	1500	VRMS
Operational Temperature	0	-	70	°C
Storage Temperature	0	-	100	°C
Relative Humidity (Non-Condensing)	10	-	85	%
Soldering Temperature	-	-	260	°C
Tip/Ring (5, 6) Load current (continuous)	-	-	120	mA
Hookswitch LED Drive Current	-	-	50	mA
Hookswitch LED Reverse Voltage	-	-	5	V
Ring Detect Phototransistor Voltage VCC	-	-	20	V

Description

Clare's CYG21XX Series DAA modules,CYG2110 and CYG2120 provide a complete telephone line interface circuit in a small 1.07" x 1.07" x 0.4" package. The modules,CYG2110 and CYG2120 provide a fast and cost effective solution for designs that require an interface to the telephone line. The CYG2100 is designed to meet PTT and safety regulations in 13 countries.
The CYG2110 and CYG2120 are designed to meet PTT regulations in France and Spain, respectively.


Parameters:

Technical/Catalog Information	CYG2110
Vendor	Clare
Category	ICs, Integrated Circuits, Semiconductors
Application	Telecommunication
Type	DAA (Data Access Arrangement)
Mounting Type	Through Hole
Package Name	PCB
Supply Voltage	5.00 V [Typ]
Packaging	Bulk
Operating Temperature	0 °C [Min]
Operating Temperature	70 °C [Max]
Lead Free Status	Lead Free
RoHS Status	RoHS Compliant
Other Names	CYG2110 CYG2110
