CYG2020

Mounting Style :
Control Voltage Range :
Load Voltage Rating :
Load Current Rating :
Contact Form :
Output Device :
Package / Case :
Product Type : PCB Mount


Features:

• Low distortion transformer signal coupling (0.01% max)
• Complete ring detector circuit
• Low power hookswitch
• Electronic inductor/gyrator circuit
• Surge protection
• Transient protection zeners
• Half- (20X0) or Full- (20X1) Wave Detection
• V.32 bis /V.34 compatible
• FCC Compatible
• Compatible with U.S. and Canadian dial up phone lines
• Supports leased-line operation
• PC board mountable


Application

• Modems
• Fax machines
• Remote data acquisition
• Security systems
• Voice mail systems
• PC motherboard
• Computer telephony
• Process control
• Medical
• PBX
• Direct broadcast satellite

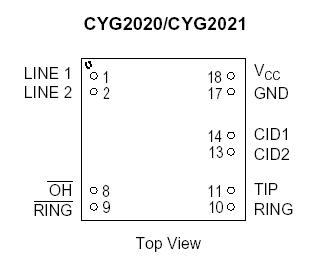

Pinout




Specifications

Parameter	Min	Typ	Max	Units
Isolation Voltage	-	-	1000	VRMS
Operational Temperature	0	-	70	°C
Storage Temperature	0	-	700	°C
Relative Humidity (Non-Condensing)	10	-	85	%
Soldering Temperature	-	-	260	°C
Tip/Ring (5, 6) Load current (continuous)	-	-	120	mA
Hookswitch LED Drive Current	-	-	50	mA
Hookswitch LED Reverse Voltage	-	-	5	V
Ring Detect Phototransistor Voltage VCC	-	-	20	V

Description

The CYG2000/2001/2010/2011/2020/2021/2030/2031 are Data Access Arrangement (DAA) modules featuring a 350V, 120mA, 15Ω relay used for hookswitch, optocoupler with minimum CTR of 33% for ring detection, and a low distortion transformer with 28.8kbps capabilities.


Parameters:

Technical/Catalog Information	CYG2020
Vendor	Clare
Category	ICs, Integrated Circuits, Semiconductors
Application	Telecommunication
Type	DAA (Data Access Arrangement)
Mounting Type	Through Hole
Package Name	PCB
Supply Voltage	5.00 V [Typ]
Packaging	Bulk
Operating Temperature	0 °C [Min]
Operating Temperature	70 °C [Max]
Lead Free Status	Contains Lead
RoHS Status	RoHS Non-Compliant
Other Names	CYG2020 CYG2020
