CY8C25122

Features:

·On-chip, user configurable analog and digital peripheral blocks
·PSoC blocks can be used individually or in combination
·12 Analog PSoC blocks provide:
·Up to 11 bit Delta-Sigma ADC
·Up to 8 bit Successive Approximation ADC
·Up to 12 bit Incremental ADC
·Up to 9 bit DAC
·Programmable gain amplifier
·Programmable filters
·Differential comparators
·8 Digital PSoC blocks provide:
·Multipurpose timers: event timing, real-time clock, pulse width modulation (PWM) and PWM with deadband
·CRC modules
·Full-duplex UARTs
·SPI master or slave configuration
·Flexible clocking sources for analog PSoC blocks

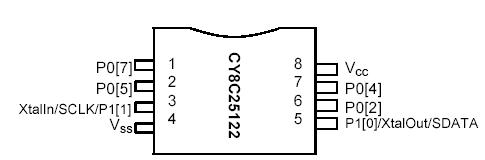

Pinout




Specifications

Symbol	Absolute Maximum Ratings	Minimum	Typical	Maximum	Unit
	Storage Temperature	-65	-	+1001
	Ambient Temperature with Power Applied	-40	-	+85
	Supply Voltage on Vcc Relative to Vss	-0.5	-	+6.0	V
	DC Input Voltage	-0.5	-	Vcc+0.5	V
	DC Voltage Applied to Tri-state	Vss-0.5	-	Vcc+0.5	V
	Maximum Current into any Port Pin	-25	-	+50	mA
	Maximum Current into any Port Pin Configured as Analog Driver	-50	-	+50	mA
	Junction Temperature up to 12 MHz	-	-	1002
	Junction Temperature at 24 MHz	-	-	82
	Static Discharge Voltage	2000	-		V
	Latch-up Current	200	-	-	mA

Description

The PSoC™ CY8C25122/CY8C26233/CY8C26443/CY8C26643 family of programmable system-on-chip devices replace multiple MCU-based system components with one single-chip, configurable device.

A PSoC device,CY8C25122/CY8C26233/CY8C26443/CY8C26643 includes configurable analog and digital peripheral blocks, a fast CPU, Flash program memory, and SRAM data memory in a range of convenient pin-outs and memory sizes. The driving force behind this innovative programmable system-on-chip comes from user configurability of the analog and digital arrays: the PSoC blocks.
