Product Details

Description



Features:

·Powerful Harvard Architecture Processor
·M8C Processor Speeds to 24 MHz
·Two 8x8 Multiply, 32-Bit Accumulate
·Low Power at High Speed
·3.0 to 5.25V Operating Voltage
·Industrial Temperature Range: -40°C to +85°C
·USB Temperature Range: -10°C to +85°C
·Advanced Peripherals (PSoC Blocks)
·6 Rail-to-Rail Analog PSoC Blocks Provide:
- Up to 14-Bit ADCs
- Up to 9-Bit DACs
- Programmable Gain Amplifiers
- Programmable Filters and Comparators
·4 Digital PSoC Blocks Provide:
- 8- to 32-Bit Timers, Counters, and PWMs
- CRC and PRS Modules
- Full-Duplex UART
- Multiple SPI™ Masters or Slaves
- Connectable to all GPIO Pins
·Complex Peripherals by Combining Blocks
·Capacitive Sensing Application Capability
·Full-Speed USB (12 Mbps)
·Four Uni-Directional Endpoints
·One Bi-Directional Control Endpoint
·USB 2.0 Compliant
·Dedicated 256 Byte Buffer
·No External Crystal Required
·Flexible On-Chip Memory
·16K Flash Program Storage 50,000 Erase/Write Cycles
·1K SRAM Data Storage
·In-System Serial Programming (ISSP™)
·Partial Flash Updates
·Flexible Protection Modes
·EEPROM Emulation in Flash
·Programmable Pin Configurations
·25 mA Sink on all GPIO
·Pull up, Pull down, High Z, Strong, or Open Drain Drive Modes on all GPIO
·Up to 48 Analog Inputs on GPIO
·Two 33 mA Analog Outputs on GPIO
·Configurable Interrupt on all GPIO
·Precision, Programmable Clocking
·Internal ±4% 24/48 MHz Oscillator
·Internal Oscillator for Watchdog and Sleep
·25% Accuracy for USB with no ExternalComponents
·Additional System Resources
·I2C™ Slave, Master, and Multi-Master to 400 kHz
·Watchdog and Sleep Timers
·User-Configurable Low Voltage Detection
·Integrated Supervisory Circuit
·On-Chip Precision Voltage Reference
·Complete Development Tools
·Free Development Software (PSoC™ Designer)
·Full-Featured, In-Circuit Emulator and Programmer
·Full Speed Emulation
·Complex Breakpoint Structure
·128K Bytes Trace Memory

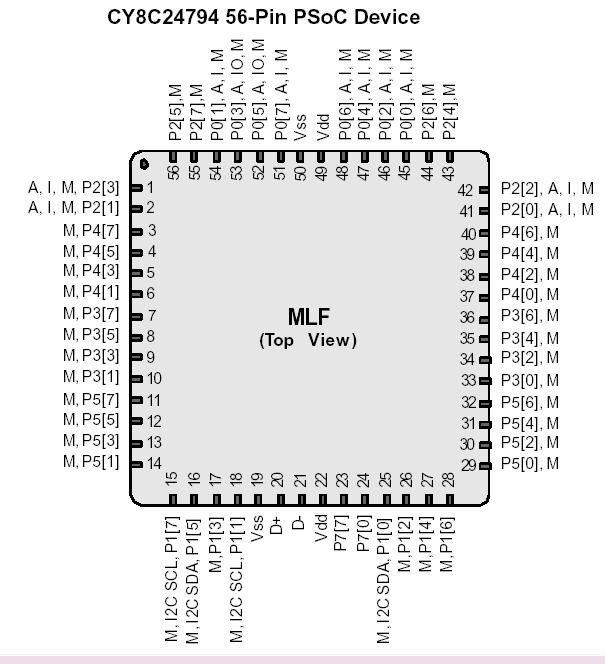

Pinout

Connection Diagram


Specifications

Symbol Description Min Typ Max Units Notes
TSTG Storage Temperature -55 +100 Higher storage temperatures will reduce data
retention time.
TA Ambient Temperature with Power Applied -40 +85
Vdd Supply Voltage on Vdd Relative to Vss -0.5 +6.0 V
VIO DC Input Voltage Vss- 0.5 Vdd + 0.5 V
VIOZ DC Voltage Applied to Tri-state Vss- 0.5 Vdd + 0.5 V
IMAIO Maximum Current into any Port Pin Configured as Analog
Driver		 -25 +50 mA
ESD Electro Static Discharge Voltage 2000 V Human Body Model ESD
LU Latch-up Current 200 mA
