Features: • Fully compatible with SMPTE-259M-SMPTE-125M compliant for 4:2:2 component video-SMPTE-244M compliant for 4fsc composite video• Fully compatible with DVB-ASI• Operates from a single +5V or -5V supply• 100-pin TQFP package• Decodes 10-bit parallel digital st...
CY7C9335: Features: • Fully compatible with SMPTE-259M-SMPTE-125M compliant for 4:2:2 component video-SMPTE-244M compliant for 4fsc composite video• Fully compatible with DVB-ASI• Operates f...
SeekIC Buyer Protection PLUS - newly updated for 2013!
268 Transactions
All payment methods are secure and covered by SeekIC Buyer Protection PLUS.
SMPTE-259M Operation
The CY7C9335 is a CMOS integrated circuit designed to decode SMPTE-125M and SMPTE-244M bit-parallel digital characters (or other data formats) using the SMPTE-259M decoding rules. Following decoding, the characters are framed by locating the 30-bit TRS pattern in the parallel character stream. The framed characters are then output.
The inputs of the CY7C9335 are designed to be directly mated to a CY7B9334 HOTLink receiver, which converts the SMPTE-259M compatible high-speed serial data stream into 10-bit parallel characters.
The CY7C9335 performs both TRS (sync) detection and framing, data descrambling with the SMPTE-259M X9 + X4 + 1 algorithm, and NRZI-to-NRZ decoding. These functions operate at any character rate from 16 to 40 MHz. For those systems operating with non-SMPTE-259M compliant video streams (or for diagnostic purposes), the descrambler and NRZI decoding functions can be disabled.
DVB-ASI Operation
The CY7C9335 also contains the necessary multiplexers, control inputs and outputs, to control a DVB-ASI compliant video stream. DVB-ASI operation is enabled through activation of a single input signal. This allows a single serial-to-parallel input port to support both SMPTE and DVB data streams under software or hardware control.

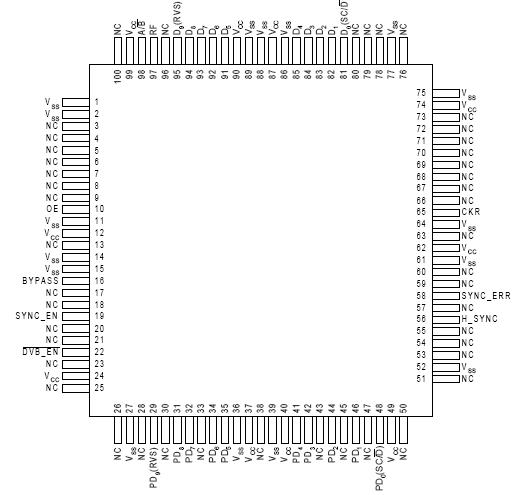

In DVB-ASI mode the CY7C9335 automatically enables both the 8B/10B decoder and multi-byte framer present in the CY7B9334 receiver/deserializer. All error detection, fill, and command codes are detected and output by the CY7C9335. The CY7C9335 operates from a single +5V or -5V supply. It is available in a 100-pin TQFP space saving package
