CY7C68013

Features:

 Single-chip integrated USB 2.0 Transceiver, SIE, and Enhanced 8051 Microprocessor
  Software: 8051 code runs from:
-Internal RAM, which is downloaded via USB
-Internal RAM, which is loaded from EEPROM
-External memory device (128 pin package
 Four programmable BULK/INTERRUPTISOCHRONOUS endpoints
-Buffering options: double, triple and quad
 8- or 16-bit external data interface
 GPIF
-Allows direct connection to most parallel interface
-Programmable waveform descriptors and configu-
ration registers to define waveforms
-Supports multiple Ready (RDY) inputs and Control (CTL) outputs
  Integrated, industry standard enhanced 8051:
-Up to 48-MHz clock rate
-Four clocks per instruction cycle
-Two USARTS
-Three counter/timers
-Expanded interrupt system
-Two data pointers
 Supports bus-powered applications by using renumer-ation
  3.3V operation
  Smart Serial Interface Engine
 Vectored USB interrupts
  Separate data buffers for the SETUP and DATA portions of a CONTROL transfer2
 Integrated I C-compatible controller, runs at 100 or 400 kHz
 48-MHz, 24-MHz, or 12-MHz 8051 operation
 Four integrated FIFOs
-Brings glue and FIFOs inside for lower system cost
-Automatic conversion to and from 16-bit buses
-Master or slave operation
-FIFOs can use externally supplied clock or asyn-chronous strobes
-Easy interface to ASIC and DSP ICs
  Special autovectors for FIFO and GPIF interrupts
  Up to 40 general-purpose I/Os
  Four package options-128-pin TQFP, 100-pin TQFP, 56-pin QFN and 56-pin SSOP
  Four packages are defined for the family: 56 SSOP, 56 QFN, 100 TQFP, and 128 TQFP

Application

 DSL modems
ATA interface
Memory card readers
Legacy conversion devices
Cameras
Scanners
Home PNA
Wireless LAN
MP3 players
Networking.

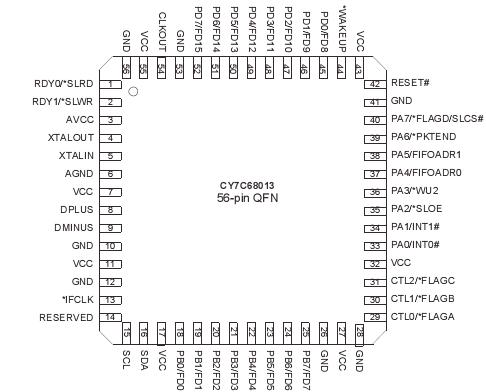

Pinout




Specifications

Storage Temperature ..................................65°C to +150°C
Ambient Temperature with Power Supplied........ 0°C to +70°C
Supply Voltage to Ground Potential ....................0.5V to +4.0V
DC Input Voltage to Any Input Pin .....................................5.25V
DC Voltage Applied to Outputs
in High Z State .......................................................0.5V to V_CC
+ 0.5V
Power Dissipation ......................................................... 936 mW
Static Discharge Voltage.......................................... ......> 2000V
Max Output Current, per I/O port ......................................10 mA
Max Output Current, all five
I/O ports (128- and 100-pin packages) ....................... ........50 m


Description

The "Reference Designs" section of the cypress website provides additional tools for typical USB 2.0 applications,CY7C68013. Each reference design comes complete with firmware source andobject code, schematics, and documentation.
