CY7C68001

Features: . USB 2.0-certified compliant -On the USB-IF Integrators List: Test ID Number 40000713. Operates at high (480 Mbps) or full (12 Mbps) speed. Supports Control Endpoint 0:-Used for handling USB device requests. Supports four configurable endpoints that share a 4-KB FIFO space-Endpoints 2, ...

product image

CY7C68001 Picture
See larger image
SeekIC No. : 004320515 Detail

CY7C68001: Features: . USB 2.0-certified compliant -On the USB-IF Integrators List: Test ID Number 40000713. Operates at high (480 Mbps) or full (12 Mbps) speed. Supports Control Endpoint 0:-Used for handling ...

CY7C68001 Data Sheet

floor Price/Ceiling Price

Get Latest Price
Part Number:
CY7C68001
Supply Ability:
5000

Price Break

  • Qty
  • 1~5000
  • Unit Price
  • Negotiable
  • Processing time
  • 15 Days
Total Cost: $ 0.00

SeekIC Buyer Protection PLUS - newly updated for 2013!

  • Escrow Protection.
  • Guaranteed refunds.
  • Secure payments.
  • Learn more >>

Month Sales

268 Transactions

Rating

evaluate  (4.8 stars)

Upload time: 2024/11/24

add to my favourite

Payment Methods

All payment methods are secure and covered by SeekIC Buyer Protection PLUS.

Notice: When you place an order, your payment is made to SeekIC and not to your seller. SeekIC only pays the seller after confirming you have received your order. We will also never share your payment details with your seller.
Product Details

Description



Features:

.  USB 2.0-certified compliant
-On the USB-IF Integrators List: Test ID Number 40000713
.  Operates at high (480 Mbps) or full (12 Mbps) speed
.  Supports Control Endpoint 0:
-Used for handling USB device requests
.  Supports four configurable endpoints that share a 4-KB FIFO space
-Endpoints 2, 4, 6, 8 for application-specific control and data
.  Standard 8- or 16-bit external master interface
-Glueless interface to most standard microproces-sors DSPs, ASICs, and FPGAs
-Synchronous or Asynchronous interface
.  Integrated phase-locked loop (PLL)
.  3.3V operation, 5V tolerant I/Os
.  56-pin SSOP and QFN package
.  Complies with most device class specifications


Application

. DSL modems
. ATA interface
. Memory card readers
. Legacy conversion device
. Cameras
. Scanners
. Home PNA
. Wireless LAN
. MP3 players
. Networking
. Printers
The "Reference Designs" section of the Cypress web site provides additional tools for typical USB applications. Each reference design comes complete with firmware source code and object code, schematics, and documentation. Please see the Cypress web site at www.cypress.com.

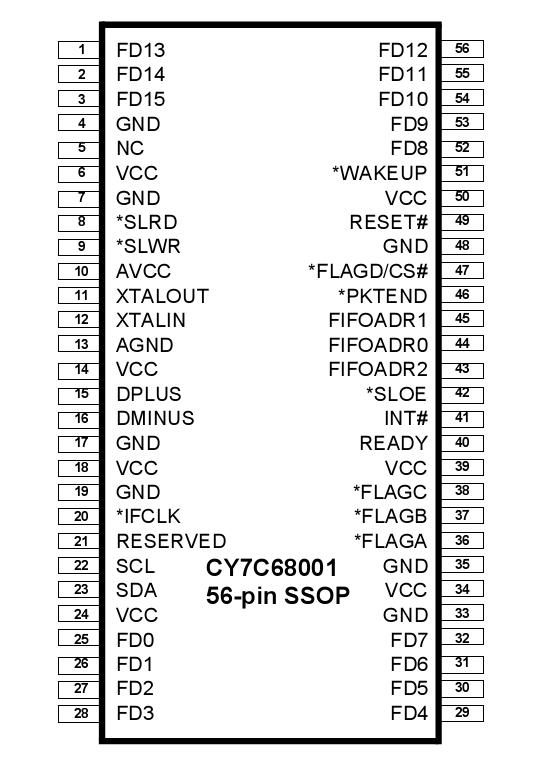

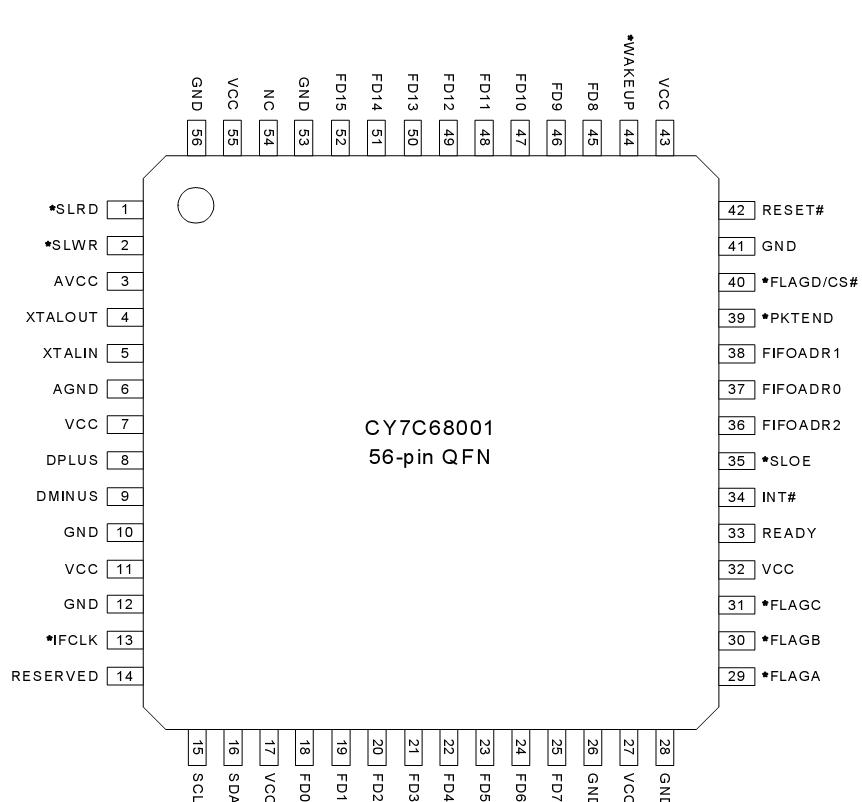

Pinout

Connection Diagram Connection Diagram


Specifications

Storage Temperature .............................................................65°C to +150°C
Ambient Temperature with Power Supplied...................................0°C to +70°C
Supply Voltage to Ground Potential...............................................0.5V to +4.0V
DC Input Voltage to Any Pin..........................................................................5.25V
DC Voltage Applied to
Outputs in High-Z State .......................................................0.5V to VCC  + 0.5V
Power Dissipation.....................................................................................936 mW
Static Discharge Voltage..........................................................................> 2000V
