CY7C66013

Features: • Full-speed USB peripheral microcontroller with an integrated USB hub -Well-suited for USB compound devices such as a keyboard hub function• 8-bit USB optimized microcontroller -Harvard architecture -6-MHz external clock source -12-MHz internal CPU clock -48-MHz internal Hub...

product image

CY7C66013 Picture
See larger image
SeekIC No. : 004320507 Detail

CY7C66013: Features: • Full-speed USB peripheral microcontroller with an integrated USB hub -Well-suited for USB compound devices such as a keyboard hub function• 8-bit USB optimized microcontrolle...

CY7C66013 Data Sheet

floor Price/Ceiling Price

Get Latest Price
Part Number:
CY7C66013
Supply Ability:
5000

Price Break

  • Qty
  • 1~5000
  • Unit Price
  • Negotiable
  • Processing time
  • 15 Days
Total Cost: $ 0.00

SeekIC Buyer Protection PLUS - newly updated for 2013!

  • Escrow Protection.
  • Guaranteed refunds.
  • Secure payments.
  • Learn more >>

Month Sales

268 Transactions

Rating

evaluate  (4.8 stars)

Upload time: 2024/11/21

add to my favourite

Payment Methods

All payment methods are secure and covered by SeekIC Buyer Protection PLUS.

Notice: When you place an order, your payment is made to SeekIC and not to your seller. SeekIC only pays the seller after confirming you have received your order. We will also never share your payment details with your seller.
Product Details

Description



Features:

• Full-speed USB peripheral microcontroller with an integrated USB hub
   -Well-suited for USB compound devices such as a keyboard hub function
• 8-bit USB optimized microcontroller
   -Harvard architecture
   -6-MHz external clock source
   -12-MHz internal CPU clock
   -48-MHz internal Hub clock
• Internal memory
   -256 bytes of RAM
   -8 KB of PROM (CY7C66013, CY7C66113)
• Integrated Master/Slave I2C-compatible controller (100 kHz) enabled through General-purpose I/O (GPIO) pins
• Hardware-assisted Parallel Interface (HAPI) for data transfer to external devices
• I/O ports
   -Three GPIO ports (Port 0 to 2) capable of sinking 8 mA per pin (typical)
   -An additional GPIO port (Port 3) capable of sinking 12 mA per pin (typical) for high current requirements: LEDs
   -Higher current drive achievable by connecting multiple GPIO pins together to drive a common output
   -Each GPIO port can be configured as inputs with internal pull-ups or open drain outputs or traditional CMOS outputs
   -A Digital-to-Analog Conversion (DAC) port with programmable current sink outputs is available on the CY7C66113 device
   -Maskable interrupts on all I/O pins
• 12-bit free-running timer with one microsecond clock ticks
• Watchdog Timer (WDT)
• Internal Power-on Reset (POR)
• USB Specification compliance
   -Conforms to USB Specification, Version 1.1
   -Conforms to USB HID Specification, Version 1.1
   -Supports one or two device addresses with up to five user-configured endpoints
• Up to two 8-byte control endpoints
• Up to four 8-byte data endpoints
• Up to two 32-byte data endpoints
   -Integrated USB transceivers
   -Supports four downstream USB ports
   -GPIO pins can provide individual power control outputs for each downstream USB port
   -GPIO pins can provide individual port over current inputs for each downstream USB port
• Improved output drivers to reduce electromagnetic interference (EMI)
• Operating voltage from 4.0V 5.5V DC
• Operating temperature from 0° 70°C
• CY7C66013 available in 48-pin PDIP (-PC) or 48-pin SSOP (-PVC) packages
• CY7C66113 available in 56-pin SSOP (-PVC) packages
• Industry-standard programmer support


Pinout

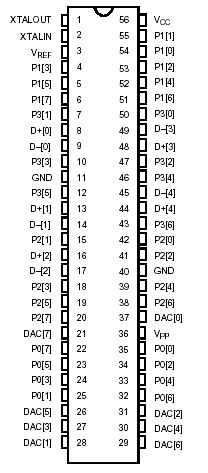

Connection Diagram


Specifications

Storage Temperature .................................65°C to +150°C
Ambient Temperature with Power Applied........ 0°C to +70°C
Supply Voltage on VCC relative to VSS............. 0.5V to +7.0V
DC Input Voltage................................... 0.5V to +VCC + 0.5V
DC Voltage Applied to Outputs
in High-Z State ...................................... 0.5V to +VCC + 0.5V
Power Dissipation .......................................................500 mW
Static Discharge Voltage .............................................> 2000V
Latch-up Current ...................................................... > 200 mA
Max Output Sink Current into Port 0, 1, 2, 3,
and DAC[1:0] Pins ......................................................... 60 mA
Max Output Sink Current into DAC[7:2] Pins.................. 10 mA
Max Output Source Current from Port 1, 2, 3, 4 ............ 30 mA
