Features:

• USB hub with an integrated microcontroller
• 8-bit USB optimized microcontroller
 -Harvard architecture
 -6-MHz external clock source
 -12-MHz internal CPU clock
 -48-MHz internal hub clock
• Internal memory
 -256 bytes of RAM
 -8 KB of PROM
• Integrated Master/Slave I2C-compatible Controller (100 kHz) enabled through General-purpose I/O (GPIO) pins
•I/O ports
 -Three GPIO ports (Port 0 to 2) capable of sinking 7 mA per pin (typical)
 -An additional GPIO port (Port 3) capable of sinking 12 mA per pin (typical) for high current requirements: LEDs
 -Higher current drive achievable by connecting multiple GPIO pins together to drive a common output
 -Each GPIO port can be configured as inputs with internal pull-ups or open drain outputs or traditional CMOSoutputs
 -Maskable interrupts on all I/O pins
• 12-bit free-running timer with one microsecond clock ticks
• Watchdog timer (WDT)
• Internal Power-on Reset (POR)
• USB Specification compliance
-Conforms to USB Specification, Version 1.1
-Conforms to USB HID Specification, Version 1.1
-Supports one or two device addresses with up to 5 user-configured endpoints
   Up to two 8-byte control endpoints
   Up to four 8-byte data endpoints
   Up to two 32-byte data endpoints
-Integrated USB transceivers
-Supports seven (CY7C65013) or four (CY7C65113) downstream USB ports
-GPIO pins can provide individual power control outputs for each downstream USB port
-GPIO pins can provide individual port over current inputs for each downstream USB port
• Improved output drivers to reduce electromagnetic interference (EMI)
• Operating voltage from 4.0V to 5.5V DC
• Operating temperature from 0° to 70 CY7C65013 available in 48-pin PDIP (.PC) or 48-pin SSOP (.PVC) packages
• CY7C65113 available in 28-pin SOIC (.SC) or 28-pin PDIP (.PC) packages
• Industry-standard programmer support.


Pinout

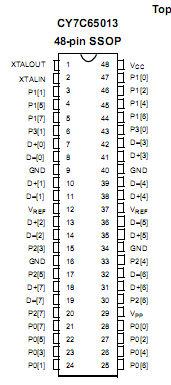

Connection Diagram


Specifications

Storage Temperature  ..............................................................65°C to +150
Ambient Temperature with Power Applied...................................... 0°C to +70
Supply voltage on VCC relative to VSS............................................0.5V to +7.0V
DC Input Voltage......................................... .........................0.5V to +VCC+ 0.5V
DC Voltage applied to Outputs in High Z State ....................0.5V to +VCC + 0.5V
Power Dissipation ......................................................................................500 mW
Static Discharge Voltage  ...........................................................................> 2000V
Latch-up Current  .................................................................................... > 200 mA
Max Output Sink Current into Port 0, 1, 2, 3  ................................................ 60 mA
Max Output Sink Current into DAC[7:2] Pins.................................................  10 mA
Max Output Source Current from Port 1, 2, 3, 4, 5, 6, 7  .............................   30 mA
