Product Details

Description



Features:

• Powerful Harvard Architecture Processor
    - M8C Processor Speeds to 12 MHz
    - Low Power at High Speed
    - 2.4V to 3.6V Operating Voltage
    - Operating Voltages Down to 1.0V Using On-Chip Switch Mode Pump (SMP)
    - Commercial Temperature Range: 0°C to +70°C
• Configurable Peripherals
    - 8-bit Timers/Counters/PWM
    - Full Duplex Master or Slave SPI
    - 10-bit ADC
    - 8-bit Successive Approximation ADC
    - Comparator
• Flexible On-Chip Memory
    - 8K Flash Program Storage 50,000 Erase/Write Cycles
    - 512 Bytes SRAM Data Storage
    - In-System Serial Programming (ISSP)
    - Partial Flash Updates
    - Flexible Protection Modes
    - EEPROM Emulation in Flash
• Complete Development Tools
    - Free Development Software (PSoC Designer™)
    - Full-Featured, In-Circuit Emulator and Programmer
    - Complex Breakpoint Structure
    - 128K Trace Memory
• Precision, Programmable Clocking
    - Internal ±2.5% 24-/48-MHz Oscillator
    - Internal Oscillator for Watchdog and Sleep
• Programmable Pin Configurations
    - 10 mA Drive on All GPIO
    - Pull-up, Pull-down, High Z, Strong, or Open Drain Drive Modes on All GPIO
    - Up to 8 Analog Inputs on GPIO
    - Configurable Interrupt on All GPIO
• Versatile Analog Mux
    - Common Internal Analog Bus
    - Simultaneous Connection of IO Combinations
• Additional System Resources
    - I2C Master, Slave and Multi-Master to 400 kHz
    - Watchdog and Sleep Timers
    - User-Configurable Low Voltage Detection
    - Integrated Supervisory Circuit
    - On-Chip Precision Voltage Reference


Application

• Wireless mice
• Wireless gamepads
• Wireless Presenter tools
• Wireless keypads
• PlayStation® 2 wired gamepads
• PlayStation 2 bridges for wireless gamepads
• Applications requiring a cost effective low voltage 8-bit microcontroller.

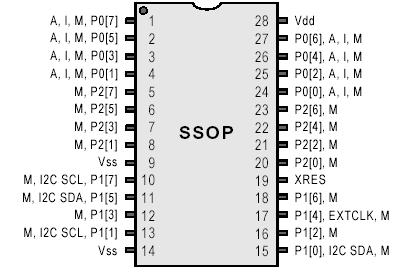

Pinout

Connection Diagram


Specifications

Parameter Description Min. Typ. Max. Unit Notes
TSTG Storage Temperature 40 +90 °C Higher storage temperatures willreduce data retention time.
TA Ambient Temperature with Power Applied 0 +70 °C
Vdd Supply Voltage on Vdd Relative to Vss 0.5 5 V
VIO DC Input Voltage Vss 0.5 Vdd + 0.5 V
VIOZ DC Voltage Applied to Tri-state Vss 0.5 Vdd + 0.5 V
IMIO Maximum Current into any Port Pin 25 +25 mA
ESD Electro Static Discharge Voltage 2000 - V Human Body Model ESD.
LU Latch-up Current 200 mA
