Product Details

Description



Features:

• High-speed, low-power, Bidirectional, First-In First-Out (FIFO) memories w/ bus matching capabilities
• 256x36x2 (CY7C43624)
• 512x36x2 (CY7C43634)
• 1Kx36x2 (CY7C43644)
• 4Kx36x2 (CY7C43664)
• 16Kx36x2 (CY7C43684)
• 0.35-micron CMOS for optimum speed/power
• High-speed 133-MHz operation (7.5 ns read/write cycle times)
• Low power
   -ICC = 100 mA
   -ISB = 10 mA
• Fully asynchronous and simultaneous read and writeoperation permitted
• Mailbox bypass register for each FIFO
• Parallel and Serial Programmable Almost-Full and Almost-Empty flags
• Retransmit function
• Standard or FWFT mode user selectable
• Partial Reset
• Big or Little Endian format for word or byte bus sizes
• 128-pin TQFP packaging
• Pin-compatible, feature enhanced, density upgrade to IDT723624/34/44 family
• Easily expandable in width and depth

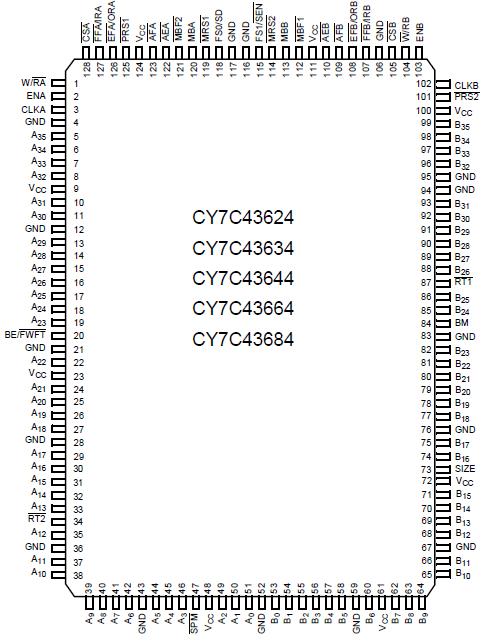

Pinout

Connection Diagram


Specifications

(Above which the useful life may be impaired. For user guidelines, not tested.)
Storage Temperature ...................................65°C to +150°C
Ambient Temperature with
Power Applied...............................................55°C to +125°C
Supply Voltage to Ground Potential ............... 0.5V to +7.0V
DC Voltage Applied to Outputs
in High Z State[2] ......................................0.5V to VCC+0.5V
DC Input Voltage[2]...................................0.5V to VCC+0.5V
Output Current into Outputs (LOW) ............................. 20 mA
Static Discharge Voltage ........................................... >2001V
(per MIL-STD-883, Method 3015)
Latch-Up Current..................................................... >200 mA
