CY7C43662

Features: •High-speed, low-power, bidirectional, First-In, First-Out (FIFO) memories•1Kx36x2 (CY7C43642)•4Kx36x2 (CY7C43662)•16Kx36x2 (CY7C43682)•0.35-micron CMOS for optimum speed/power•High speed 133-MHz operation (7.5-ns read/write cycle times)•Low powe...

product image

CY7C43662 Picture
See larger image
SeekIC No. : 004320411 Detail

CY7C43662: Features: •High-speed, low-power, bidirectional, First-In, First-Out (FIFO) memories•1Kx36x2 (CY7C43642)•4Kx36x2 (CY7C43662)•16Kx36x2 (CY7C43682)•0.35-micron CMOS for o...

CY7C43662 Data Sheet

floor Price/Ceiling Price

Get Latest Price
Part Number:
CY7C43662
Supply Ability:
5000

Price Break

  • Qty
  • 1~5000
  • Unit Price
  • Negotiable
  • Processing time
  • 15 Days
Total Cost: $ 0.00

SeekIC Buyer Protection PLUS - newly updated for 2013!

  • Escrow Protection.
  • Guaranteed refunds.
  • Secure payments.
  • Learn more >>

Month Sales

268 Transactions

Rating

evaluate  (4.8 stars)

Upload time: 2024/5/31

add to my favourite

Payment Methods

All payment methods are secure and covered by SeekIC Buyer Protection PLUS.

Notice: When you place an order, your payment is made to SeekIC and not to your seller. SeekIC only pays the seller after confirming you have received your order. We will also never share your payment details with your seller.
Product Details

Description



Features:

•High-speed, low-power, bidirectional, First-In, First-Out  (FIFO) memories
•1Kx36x2 (CY7C43642)
•4Kx36x2 (CY7C43662)
•16Kx36x2 (CY7C43682)
•0.35-micron CMOS for optimum speed/power
•High speed 133-MHz operation (7.5-ns read/write cycle  times)
•Low power -I CC= 100 mA -I SB = 10 mA
•Fully asynchronous and simultaneous read and write  operation permitted
•Mailbox bypass register for each FIFO
•Parallel Programmable Almost Full and Almost Empty  flags
•Retransmit function
•Standard or FWFT mode user selectable
•120-pin TQFP packaging
•Easily expandable in width and depth

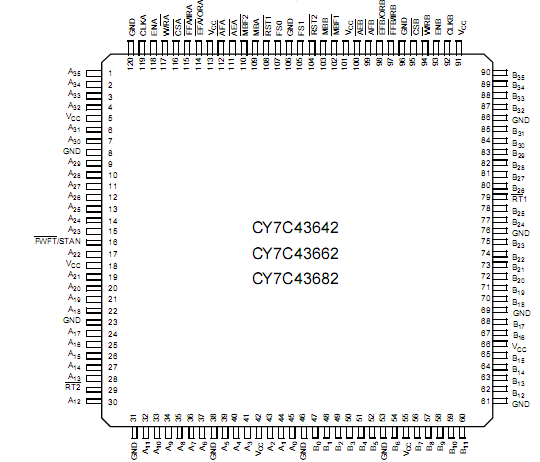

Pinout

Connection Diagram


Specifications

(Above which the useful life may be impaired. For user guidelines, not tested.)
Storage Temperature ............................................................................. 65° C to +150°C
Ambient Temperature withPower Applied................................................ 55°C to +125°C
Supply Voltage to Ground Potential..................................................................0.5V to +7.0V
DC Voltage Applied to Outputsin High-Z State[12]....................................0.5V to VCC +0.5V
DC Input Voltage [12] .............................................................................. 0.5V to VCC+0.5V
Output Current into Outputs (LOW).................................................................................20 mA
Static Discharge Voltage...............................................................................................> 2001V
(per MIL-STD-883, Method 3015)
Latch-up Current..........................................................................................................> 200mA
