CY7C1475V25

Features: • No Bus Latency™ (NoBL™) architecture eliminates dead cycles between write and read cycles.• Can support up to 133-MHz bus operations with zero wait states• Data is transferred on every clock• Pin compatible and functionally equivalent to ZBT™ d...

product image

CY7C1475V25 Picture
SeekIC No. : 004320179 Detail

CY7C1475V25: Features: • No Bus Latency™ (NoBL™) architecture eliminates dead cycles between write and read cycles.• Can support up to 133-MHz bus operations with zero wait states• ...

floor Price/Ceiling Price

Part Number:
CY7C1475V25
Supply Ability:
5000

Price Break

  • Qty
  • 1~5000
  • Unit Price
  • Negotiable
  • Processing time
  • 15 Days
Total Cost: $ 0.00

SeekIC Buyer Protection PLUS - newly updated for 2013!

  • Escrow Protection.
  • Guaranteed refunds.
  • Secure payments.
  • Learn more >>

Month Sales

268 Transactions

Rating

evaluate  (4.8 stars)

Upload time: 2024/11/24

Payment Methods

All payment methods are secure and covered by SeekIC Buyer Protection PLUS.

Notice: When you place an order, your payment is made to SeekIC and not to your seller. SeekIC only pays the seller after confirming you have received your order. We will also never share your payment details with your seller.
Product Details

Description



Features:

• No Bus Latency™ (NoBL™) architecture eliminates dead cycles between write and read cycles.
• Can support up to 133-MHz bus operations with zero wait states
• Data is transferred on every clock
• Pin compatible and functionally equivalent to ZBT™ devices
• Internally self-timed output buffer control to eliminate the need to use OE
• Registered inputs for flow-through operation
• Byte Write capability
• 2.5V/1.8V I/O power supply
• Fast clock-to-output times
- 6.5 ns (for 133-MHz device)
- 8.5 ns (for 100-MHz device)
• Clock Enable (CEN) pin to enable clock and suspend operation
• Synchronous self-timed writes
• Asynchronous Output Enable
• Offered in JEDEC-standard lead-free 100 TQFP, and 165-ball fBGA packages for CY7C1471V25 and CY7C1473V25. 209-ball fBGA package for CY7C1475V25.
• Three chip enables for simple depth expansion.
• Automatic Power-down feature available using ZZ mode or CE deselect.
• JTAG boundary scan for BGA and fBGA packages
• Burst Capability-linear or interleaved burst order
• Low standby power



Pinout

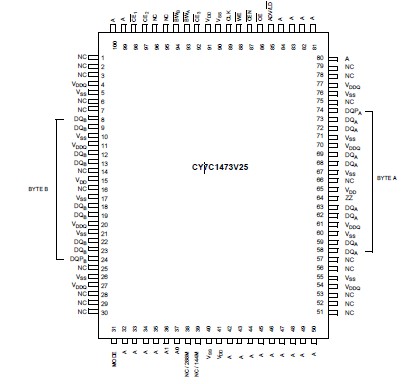

  Connection Diagram


Specifications

(Above which the useful life may be impaired. For user guidelines, not tested.)
Storage Temperature ..............................65°C to +150°C
Ambient Temperature with
Power Applied..........................................55°C to +125°C
Supply Voltage on VDD Relative to GND........ 0.5V to +3.6V
DC Voltage Applied to Outputs
in Tri-State........................................... 0.5V to VDDQ + 0.5V
DC Input Voltage....................................0.5V to VDD + 0.5V
Current into Outputs (LOW)......................................... 20 mA
Static Discharge Voltage........................................... >2001V
(per MIL-STD-883, Method 3015)
Latch-up Current..................................................... >200 mA



Description

The CY7C1471V25, CY7C1473V25 and CY7C1475V25 are 2.5V, 2M x 36/4M x 18/1M x 72 Synchronous Flow-through Burst SRAMs designed specifically to support unlimited true back-to-back Read/Write operations without the insertion of wait states. The CY7C1471V25, CY7C1473V25 and CY7C1475V25 are equipped with the advanced No Bus Latency (NoBL) logic required to enable consecutive Read/Write operations with data being transferred on every clock cycle. This feature dramatically improves the throughput of data through the SRAM, especially in systems that require frequent Write-Read transitions.

All synchronous inputs of  CY7C1471V25, CY7C1473V25 and CY7C1475V25 pass through input registers controlled by the rising edge of the clock. The clock input is qualified by the Clock Enable (CEN) signal, which when deasserted suspends operation and extends the previous clock cycle. Maximum access delay from the clock rise is 6.5 ns (133-MHz
device).

Write operations of  CY7C1471V25, CY7C1473V25 and CY7C1475V25 are controlled by the two or four Byte Write Select (BWX) and a Write Enable (WE) input. All writes are conducted with on-chip synchronous self-timed write circuitry.

Three synchronous Chip Enables (CE1, CE2,CE3) and an asynchronous Output Enable (OE) of   CY7C1471V25, CY7C1473V25 and CY7C1475V25 provide for easy bank sele tion and output tri-state control. In order to avoid bus  ontention, the output drivers are synchronously tri-stated during the data portion of a write sequence.
