CY7C1461AV25

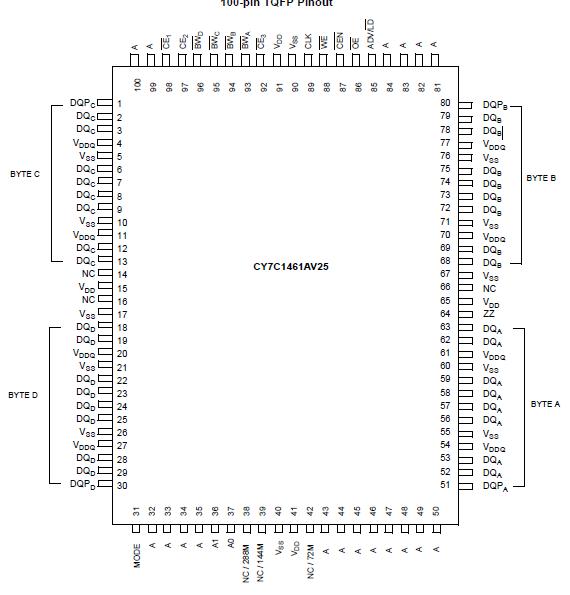

The CY7C1461AV25/CY7C1463AV25/CY7C1465AV25 are 2.5V, 1M × 36/2M × 18/512K × 72 Synchronous Flow-through Burst SRAMs designed specifically to support unlimited true back-to-back Read/Write operations without the insertion of wait states. The CY7C1461AV25/CY7C1463AV25/ CY7C1465AV25 is equipped with the advanced No Bus Latency (NoBL) logic required to enable consecutive Read/Write operations with data being transferred on every clock cycle. This feature dramatically improves the throughput of data through the SRAM, especially in systems that require frequent Write-Read transitions.

All synchronous inputs of CY7C1461AV25/CY7C1463AV25/CY7C1465AV25  pass through input registers controlled by the rising edge of the clock. The clock input is qualified by the Clock Enable (CEN) signal, which when deasserted suspends operation and extends the previous clock cycle. Maximum access delay from the clock rise is 6.5 ns (133-MHz device).

Write operations of CY7C1461AV25/CY7C1463AV25/CY7C1465AV25  are controlled by the two or four Byte Write Select (BW_X) and a Write Enable (WE) input. All writes of CY7C1461AV25/CY7C1463AV25/CY7C1465AV25 are conducted with on-chip synchronous self-timed write circuitry.

Three synchronous Chip Enables (CE₁, CE2, CE₃) and an asynchronous Output Enable (OE) of CY7C1461AV25/CY7C1463AV25/CY7C1465AV25 provide for easy bank selection and output tri-state control. In order to avoid bus contention, the output drivers are synchronously tri-stated during the data portion of a write sequence
