Product Details

Description



Features:

• True Dual-Ported memory cells which allow simultaneous access of the same memory location
• 4K/8K/16K/32K x 8 organizations (CY7C0138AV/144AV/006AV/007AV)
• 4K/8K/16K/32K x 9 organizations (CY7C0139AV/145AV/016AV/017AV)
• 0.35-micron CMOS for optimum speed/power
• High-speed access: 20/25 ns
• Low operating power
- Active: ICC = 115 mA (typical)
- Standby: ISB3 = 10 A (typical)
• Fully asynchronous operation
• Automatic power-down
• Expandable data bus to 16/18 bits or more using Master/ Slave chip select when using more than one device
• On-chip arbitration logic
• Semaphores included to permit software handshaking between ports
• INT flag for port-to-port communication
• Pin select for Master or Slave
• Commercial and Industrial Temperature Ranges
• Available in 68-pin PLCC (all) and 64-pin TQFP (7C006AV & 7C144AV)
• Pb-Free packages available


Pinout

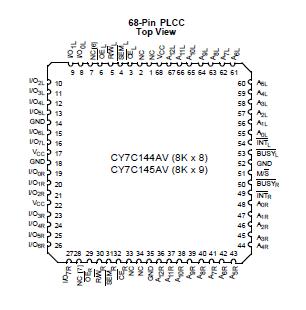

Connection Diagram


Specifications

(Above which the useful life may be impaired. For user guidelines, not tested.)
Storage Temperature .................................65°C to +150°C
Ambient Temperature with
Power Applied.............................................55°C to +125°C
Supply Voltage to Ground Potential ............... 0.5V to +4.6V
DC Voltage Applied to
Outputs in High Z State............................0.5V to VCC+0.5V
DC Input Voltage[11] .................................0.5V to VCC+0.5V
Output Current into Outputs (LOW)............................. 20 mA
Static Discharge Voltage........................................... >2001V
Latch-Up Current.................................................... >200 mA
