Features: • 256K x 32 common I/O• 3.3V 5% and +10% core power supply (VDD)• 3.3V I/O supply (VDDQ)• Fast clock-to-output times - 6.5 ns (133-MHz version) - 7.5 ns (117-MHz version)• Provide high-performance 2-1-1-1 access rate• User-selectable burst counter supp...
CY7C1365B: Features: • 256K x 32 common I/O• 3.3V 5% and +10% core power supply (VDD)• 3.3V I/O supply (VDDQ)• Fast clock-to-output times - 6.5 ns (133-MHz version) - 7.5 ns (117-MHz ve...
SeekIC Buyer Protection PLUS - newly updated for 2013!
268 Transactions
All payment methods are secure and covered by SeekIC Buyer Protection PLUS.

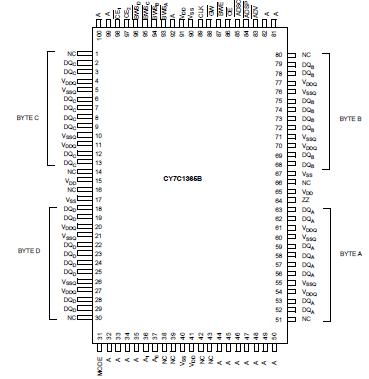

The CY7C1365B is a 256K x 32 synchronous cache RAM designed to interface with high-speed microprocessors with minimum glue logic. Maximum access delay from clock rise is 6.5 ns (133-MHz version). A 2-bit on-chip counter captures the first address in a burst and increments the address automatically for the rest of the burst access. All synchronous inputs of CY7C1365B are gated by registers controlled by a positive-edge-triggered Clock Input (CLK). The synchronous inputs include all addresses, all data inputs, address-pipelining Chip Enable (CE1), depth-expansion Chip Enables (CE2 and CE3), Burst Control inputs of CY7C1365B (ADSC, ADSP, and ADV), Write Enables (BW[A:D], and BWE), and Global Write (GW). Asynchronous inputs include the Output Enable (OE) and the ZZ pin.
The CY7C1365B allows either interleaved or linear burst sequences, selected by the MODE input pin. A HIGH selects an interleaved burst sequence, while a LOW selects a linear burst sequence. Burst accesses can be initiated with the Processor Address Strobe (ADSP) or the cache Controller Address Strobe (ADSC) inputs. Address advancement of CY7C1365B is controlled by the Address Advancement (ADV) input.
Addresses and Chip Enables CY7C1365B are registered at rising edge of clock when either Address Strobe Processor (ADSP) or Address Strobe Controller (ADSC) are active. Subsequent burst addresses can be internally generated as controlled by the Advance pin (ADV).
The CY7C1365B operates from a +3.3V core power supply while all outputs may operate with a +3.3V supply. All inputs and outputs are JEDEC-standard JESD8-5-compatible.
