CY7C1361C

• Supports 133-MHz bus operations
• 256K * 36/512K * 18 common I/O
• 3.3V 5% and +10% core power supply (V_DD)
• 2.5V or 3.3V I/O supply (VDDQ)
• Fast clock-to-output times
   - 6.5 ns (133-MHz version)
   - 8.5 ns (100-MHz version)
• Provide high-performance 2-1-1-1 access rate
• User-selectable burst counter supporting Intel^® Pentium^® interleaved or linear burst sequences
• Separate processor and controller address strobes
• Synchronous self-timed write
• Asynchronous output enable

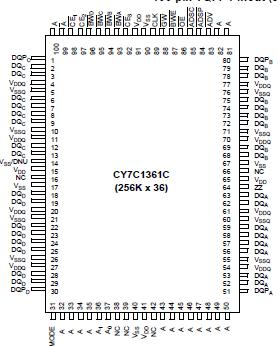

• Available in lead-free 100-pin TQFP package, lead-free and non lead-free 119-ball BGA package and 165-ball FBGA package
• IEEE 1149.1 compatible JTAG Boundary Scan for BGA and FBGA packages
•"ZZ" Sleep Mode option

The CY7C1361C/CY7C1363C is a 3.3V, 256K x 36/512K x 18 Synchronous Flow-through SRAMs, respectively designed to interface with high-speed microprocessors with minimum glue logic. Maximum access delay from clock rise is 6.5 ns
(133-MHz version). A 2-bit on-chip counter captures the first address in a burst and increments the address automatically for the rest of the burst access. All synchronous inputs are gated by registers controlled by a positive-edge-triggered Clock Input (CLK). The synchronous inputs of CY7C1361C/CY7C1363C include all addresses, all data inputs, address-pipelining Chip Enable (CE₁), depth-expansion Chip Enables (CE₂ and CE₃ ^[2]), Burst Control inputs (ADSC, ADSP, and ADV), Write Enables (BW_x,and BWE), and Global Write (GW). Asynchronous inputs include the Output Enable (OE) and the ZZ pin.

The CY7C1361C/CY7C1363C allows either interleaved or linear burst sequences, selected by the MODE input pin. A HIGH selects an interleaved burst sequence, while a LOW selects a linear burst sequence. Burst accesses CY7C1361C/CY7C1363C can be initiated with the Processor Address Strobe (ADSP) or the cache Controller Address Strobe (ADSC) inputs. Address advancement is controlled by the Address Advancement (ADV) input

Addresses and chip enables CY7C1361C/CY7C1363C are registered at rising edge of clock when either Address Strobe Processor (ADSP) or Address Strobe Controller (ADSC) are active. Subsequent burst addresses can be internally generated as controlled by the Advance pin (ADV).

The CY7C1361C/CY7C1363C operates from a +3.3V core power supply and a +3.3V supply for the I/Os. All inputs and outputs are JEDEC-standard JESD8-5-compatible.
