CY7C1360C

• Supports bus operation up to 250 MHz
• Available speed grades are 250, 200, and 166 MHz
• Registered inputs and outputs for pipelined operation
• 3.3V core power supply
• 2.5V/3.3V I/O operation
• Fast clock-to-output times
   - 2.8 ns (for 250-MHz device)
   - 3.0 ns (for 200-MHz device)
   - 3.5 ns (for 166-MHz device)
• Provide high-performance 3-1-1-1 access rate
• User-selectable burst counter supporting Intel^®  Pentium^® interleaved or linear burst sequences
• Separate processor and controller address strobes
• Synchronous self-timed writes
• Asynchronous output enable
• Single Cycle Chip Deselect

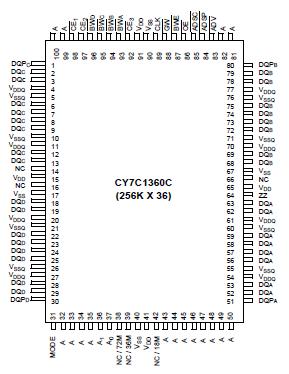

• Available in lead-free 100-pin TQFP package, lead-free and non lead-free 119-ball BGA package and 165-ball FBGA package
• TQFP Available with 3-Chip Enable and 2-Chip Enable
• IEEE 1149.1 JTAG-Compatible Boundary Scan
• "ZZ" Sleep Mode Option

The CY7C1360C/CY7C1362C SRAM integrates 256K x 32 SRAM and 512K x 18 SRAM cells with advanced synchronous peripheral circuitry and a two-bit counter for internal burst operation. All synchronous inputs are gated by registers controlled by a positive-edge-triggered Clock Input (CLK). The synchronous inputs of CY7C1360C/CY7C1362C include all addresses, all data inputs, address-pipelining Chip Enable (CE1), depth-expansion Chip Enables (CE₂ and CE₃ ^[2]), Burst Control inputs (ADSC, ADSP, and ADV), Write Enables (BW_X, and BWE) ,and Global Write (GW).Asynchronous inputs include the Output Enable (OE) and the ZZ pin.

Addresses and chip CY7C1360C/CY7C1362C enables are registered at rising edge of clock when either Address Strobe Processor (ADSP) or Address Strobe Controller (ADSC) are active. Subsequent burst addresses can be internally generated as controlled by the Advance pin (ADV).

Address, data inputs, and write controls of CY7C1360C/CY7C1362C are registered on-chip to initiate a self-timed Write cycle. This part supports Byte Write operations (see Pin Descriptions and Truth Table for further details). Write cycles can be one to four bytes wide as controlled by the byte write control inputs. GW active LOW causes all bytes to be written. This device incorporates an additional pipelined enable register CY7C1360C/CY7C1362C which delays turning off the output buffers an additional cycle when a deselect is executed.This feature allows depth expansion without penal izing system performance.

The CY7C1368C operates from a +3.3V core power supply and a +3.3V supply for the I/Os. All inputs and outputs are JEDEC-standard JESD8-5-compatible.
