CY7C1325F

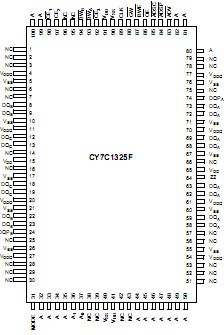

The CY7C1325F is a 262,144 x 18 synchronous cache RAM designed to interface with high-speed microprocessors with minimum glue logic. Maximum access elay of CY7C1325F from clock rise is 6.5 ns (133-MHz version). A 2-bit on-chip counter captures the first address in a burst and increments the address automati- cally for the rest of the burst access. All synchronous inputs are gated by registers controlled by a positive-edge-triggered Clock Input (CLK). The synchronous inputs include all addresses, all data inputs, address-pipelining Chip Enable (CE1 ), depth-expansion Chip Enables (CE2 and CE3), Burst Control inputs (ADSC,  ADSP,  and  ADV), Write Enables (BW[A:B] , and BWE), and Global Write (GW). Asynchronous inputs of CY7C1325F include the Output Enable (OE) and the ZZ pin.

The CY7C1325F allows either interleaved or linear burst sequences, selected by the MODE input pin. A HIGH selects an interleaved burst sequence, while a LOW selects a linear burst sequence. Burst accesses of CY7C1325F can be initiated with the Processor Address Strobe (ADSP) or the cache Controller Address Strobe (ADSC) inputs.

Addresses and chip of CY7C1325F enables are registered at rising edge of clock when either Address Strobe Processor (ADSP) or Address Strobe Controller (ADSC) are active. Subsequent burst addresses can be internally generated as controlled by the Advance pin (ADV).

The CY7C1325F operates from a +3.3V core power supply while all outputs may operate with either a +2.5 or +3.3V supply. All inputs and outputs are JEDEC-standard JESD8-5-compatible.
