Product Details

Description



Features:

• High speed
-tAA = 8, 10, 12 ns
• Low active power
-1080 mW (max.)
• Operating voltages of 3.3 ± 0.3V
• 2.0V data retention
• Automatic power-down when deselected
• TTL-compatible inputs and outputs
• Easy memory expansion with CE1 and CE2 features

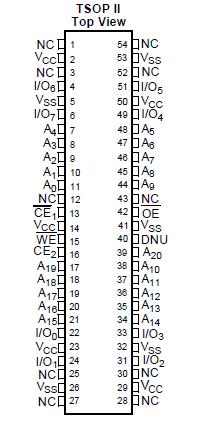

Pinout

Connection Diagram


Specifications

Storage Temperature ...............................65°C to +150°C
Ambient Temperature with
Power Applied...........................................55°C to +125°C
Supply Voltage on VCC to Relative GND[1] .... 0.5V to +4.6V
DC Voltage Applied to Outputs
in High-Z State[1] ...................................0.5V to VCC + 0.5V
DC Input Voltage[1] ................................0.5V to VCC + 0.5V
Current into Outputs (LOW).........................................   20 mA


Description

The CY7C1069AV33 is a high-performance CMOS Static RAM organized as 2,097,152 words by 8 bits. Writing to the device is accomplished by enabling the chip (by taking CE1 LOW and CE2 HIGH) and Write Enable (WE) inputs LOW.

Reading from CY7C1069AV33 is accomplished by enabling the chip (CE1 LOW and CE2 HIGH) as well as forcing the Output Enable (OE) LOW while forcing the Write Enable (WE) HIGH. See the truth table at the back of this data sheet for a complete description of Read and Write modes.

The input/output pins (I/O0 through I/O7) are placed in a high-impedance state when CY7C1069AV33 is deselected (CE1 HIGH or CE2 LOW), the outputs are disabled (OE HIGH), or during a Write operation (CE1 LOW, CE2 HIGH, and WE LOW).

The CY7C1069AV33 is available in a 54-pin TSOP II package with center power and ground (revolutionary) pinout, and a48-ball fine-pitch ball grid array (FBGA) package.
