CY7C1049BV33L

Features: • High speed-tAA = 15 ns• Low active power-504 mW (max.)• Low CMOS standby power (Commercial L version)-1.8 mW (max.)• 2.0V Data Retention (660 W at 2.0V retention)• Automatic power-down when deselected• TTL-compatible inputs and outputs• Easy me...

product image

CY7C1049BV33L Picture
See larger image
SeekIC No. : 004319803 Detail

CY7C1049BV33L: Features: • High speed-tAA = 15 ns• Low active power-504 mW (max.)• Low CMOS standby power (Commercial L version)-1.8 mW (max.)• 2.0V Data Retention (660 W at 2.0V retention)...

CY7C1049BV33L Data Sheet

floor Price/Ceiling Price

Get Latest Price
Part Number:
CY7C1049BV33L
Supply Ability:
5000

Price Break

  • Qty
  • 1~5000
  • Unit Price
  • Negotiable
  • Processing time
  • 15 Days
Total Cost: $ 0.00

SeekIC Buyer Protection PLUS - newly updated for 2013!

  • Escrow Protection.
  • Guaranteed refunds.
  • Secure payments.
  • Learn more >>

Month Sales

268 Transactions

Rating

evaluate  (4.8 stars)

Upload time: 2024/11/27

add to my favourite

Payment Methods

All payment methods are secure and covered by SeekIC Buyer Protection PLUS.

Notice: When you place an order, your payment is made to SeekIC and not to your seller. SeekIC only pays the seller after confirming you have received your order. We will also never share your payment details with your seller.
Product Details

Description



Features:

• High speed
-tAA = 15 ns
• Low active power
-504 mW (max.)
• Low CMOS standby power (Commercial L version)
-1.8 mW (max.)
• 2.0V Data Retention (660 W at 2.0V retention)
• Automatic power-down when deselected
• TTL-compatible inputs and outputs
• Easy memory expansion with CE and OE features


Pinout

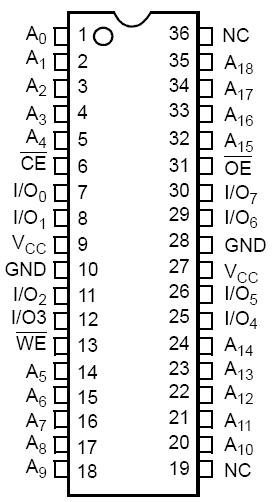

Connection Diagram


Specifications

(Above which the useful life may be impaired. For user guidelines,
not tested.)
Storage Temperature ..................................65°C to +150°C
Ambient Temperature with
Power Applied............................................. 55°C to +125°C
Supply Voltage on VCC to Relative GND[2]......0.5V to +4.6V
DC Voltage Applied to Outputs[2]
in High Z State .......................................0.5V to VCC + 0.5V
DC Input Voltage[2] .............................. 0.5V to VCC + 0.5V
Current into Outputs (LOW) ........................................ 20 mA


Description

The CY7C1049BV33 is a high-performance CMOS Static RAM organized as 524,288 words by 8 bits. Easy memory expansion is provided by an active LOW Chip Enable (CE), an active LOW Output Enable (OE), and three-state drivers. Writing to CY7C1049BV33L is accomplished by taking Chip Enable (CE) and Write Enable (WE) inputs LOW. Data on the eight I/O pins (I/O0 through I/O7) is then written into the location specified on the address pins (A0 through A18).

Reading from CY7C1049BV33L is accomplished by taking Chip Enable (CE) and Output Enable (OE) LOW while forcing Write Enable (WE) HIGH. Under these conditions, the contents of the memory location specified by the address pins will appear on the I/O pins.

The eight input/output pins (I/O0 through I/O7) are placed in a high-impedance state when CY7C1049BV33L is deselected (CE HIGH), the outputs are disabled (OE HIGH), or during a write operation (CE LOW, and WE LOW).

The CY7C1049BV33 is available in a standard 400-mil-wide 36-pin SOJ and 44-pin TSOPII packages with center power and ground (revolutionary) pinout.
