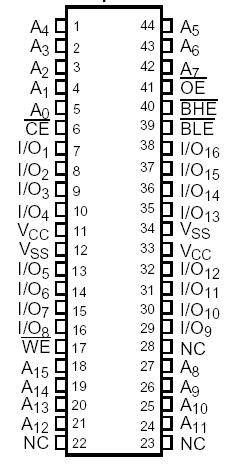

Features: • High speed -tAA = 12 ns• CMOS for optimum speed/power• Low active power -1320 mW (max.)• Automatic power-down when deselected• Independent Control of Upper and Lower bits• Available in 44-pin TSOP II and 400-mil SOJPinoutSpecifications(Above which th...
CY7C1021: Features: • High speed -tAA = 12 ns• CMOS for optimum speed/power• Low active power -1320 mW (max.)• Automatic power-down when deselected• Independent Control of Upper ...
SeekIC Buyer Protection PLUS - newly updated for 2013!
268 Transactions
All payment methods are secure and covered by SeekIC Buyer Protection PLUS.
The CY7C1021 is a high-performance CMOS static RAM organized as 65,536 words by 16 bits. This device has an automatic power-down feature that significantly reduces power consumption when deselected.
Writing to CY7C1021 is accomplished by taking chip enable (CE) and write enable (WE) inputs LOW. If byte low enable (BLE) is LOW, then data from I/O pins (I/O1 through I/O8), is written into the location specified on the address pins CY7C1021 (A0 through A15). If byte high enable (BHE) is LOW, then data from I/O pins (I/O9 through I/O16) is written into the location specified on the address pins (A0 through A15).
Reading from CY7C1021 is accomplished by taking chip enable (CE) and output enable (OE) LOW while forcing the write enable (WE) HIGH. If byte low enable (BLE) is LOW, then data from the memory location specified by the address pins will appear on I/O1 to I/O8. If byte high enable (BHE) is LOW, then data from memory will appear on I/O9 to I/O16. See the truth table at the back of this datasheet for a complete description of read and write modes.
The input/output pins (I/O1 through I/O16) are placed in a high-impedance state when CY7C1021 is deselected (CE HIGH), the outputs are disabled (OE HIGH), the BHE and BLE are disabled (BHE, BLE HIGH), or during a write operation (CE LOW, and WE LOW).
The CY7C1021 is available in standard 44-pin TSOP Type II and 400-mil-wide SOJ packages.
