Features: •High speed
-tAA = 10 ns
•CMOS for optimum speed/power
•Center power/ground pinout
•Automatic power-down when deselected
•Easy memory expansion with CE</a> and OE</a> options

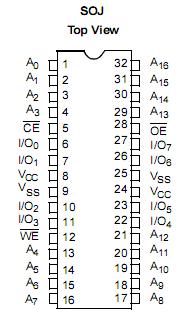

•Functionally equivalent to CY7C1019V33Pinout
Specifications(Above which the useful life may be impaired. For user guide-lines, not tested.)
Storage Temperature .............................65°C to +150°C
Ambient Temperature with
Power Applied.........................................55°C to +125°C
Supply Voltage on VCC to Relative GND[1]....0.5V to +7.0V
DC Voltage Applied to Outputs
in High Z State[1]..................................0.5V to VCC + 0.5V
DC Input Voltage[1]..............................0.5V to VCC + 0.5V
Current into Outputs (LOW).........................................20 mA
Static Discharge Voltage............................................>2001V
(per MIL-STD-883, Method 3015)
Latch-Up Current.....................................................>200 mADescriptionThe CY7C1019BV33 is a high-performance CMOS static RAM organized as 131,072 words by 8 bits. Easy memory expansion is provided by an active LOW Chip Enable (CE</a>), an active LOW Output Enable (OE</a>), and three-state drivers. CY7C1019BV33 has an automatic power-down feature that significantly reduces power consumption when deselected.
Writing to CY7C1019BV33 is accomplished by taking Chip Enable (CE</a>) and Write Enable (WE</a>) inputs LOW. Data on the eight I/O pins (I/O0 through I/O7) is then written into the location speci-fied on the address pins (A0 through A16).
Reading from the device is accomplished by taking Chip Enable (CE</a>) and Output Enable (OE</a>) LOW while forcing Write Enable (WE</a>) HIGH. Under these conditions, the contents of the memory location specified by the address pins will appear on the I/O pins.
The eight input/output pins (I/O0 through I/O7) are placed in a high-impedance state when CY7C1019BV33 is deselected (CE</a>HIGH), the outputs are disabled (OE</a> HIGH), or during a write operation (CE</a> LOW, and WE</a> LOW).
The CY7C1019BV33 is available in a standard 400-mil-wide package.
CY7C1019BV33 Data Sheet
