Features: • High speed -tAA = 15 ns• Low active power -1150 mW (max.)• Low CMOS standby power (L version) -40 mW (max.)• 2.0V Data Retention (4 mW at 2.0V retention)• Automatic power-down when deselected• TTL-compatible inputs and outputs• Easy memory expa...
CY7C1011: Features: • High speed -tAA = 15 ns• Low active power -1150 mW (max.)• Low CMOS standby power (L version) -40 mW (max.)• 2.0V Data Retention (4 mW at 2.0V retention)• A...
SeekIC Buyer Protection PLUS - newly updated for 2013!
268 Transactions
All payment methods are secure and covered by SeekIC Buyer Protection PLUS.
The CY7C1011 is a high-performance CMOS static RAM organized as 131,072 words by 16 bits.
Writing to CY7C1011 is accomplished by taking chip enable (CE) and write enable (WE) inputs LOW. If byte low enable (BLE) is LOW, then data from I/O pins (I/O0 through I/O7), is written into the location specified on the address pins (A0 through A16). If byte high enable (BHE)CY7C1011 is LOW, then data from I/O pins (I/O8 through I/O15) is written into the location specified on the address pins (A0 through A16).
Reading from CY7C1011 is accomplished by taking chip enable (CE) and output enable (OE) LOW while forcing the write enable (WE) HIGH. If byte low enable (BLE) is LOW, then data from the memory location specified by the address pins ofCY7C1011 will appear on I/O0 to I/O7. If byte high enable (BHE) is LOW, then data from memory will appear on I/O8 to I/O15. See the truth table at the back of this datasheet for a complete description of read and write modes.
The input/output pins (I/O0 through I/O15) are placed in a high-impedance state when CY7C1011 is deselected (CE HIGH), the outputs are disabled (OE HIGH), the BHE and BLE are disabled (BHE, BLE HIGH), or during a write operation (CE LOW, and WE LOW).

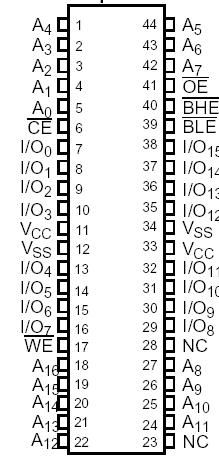

The CY7C1011 is available in a standard 44-pin TSOP II package with center power and ground (revolutionary) pinout.
