CY7C09449PV-AC

Series: -
Operating Temperature: 0°C ~ 70°C
Format - Memory: RAM
Interface: Parallel
Packaging: Tray
Voltage - Supply: 3 V ~ 3.6 V
Speed: 50MHz
Manufacturer: Cypress Semiconductor Corp
Memory Type: SRAM - Dual Port, Synchronous
Supplier Device Package: -
Memory Size: 128K (4K x 32)
Package / Case: 160-LQFP


Features:

• 128K bits of dual-ported shared memory
• Master and Target PCI Specification 2.2 compliant interface
• Embedded host bridge capability
• Direct interface to many microprocessors
• I2O message transport unit; includes four 32-bit, 32- entry FIFO
• Local bus clock rates up to 50 MHz
• Single 3.3V Power Supply including compatibility with 3V and 5V PCI Bus signaling
• 160-pin thin plastic quad flat package

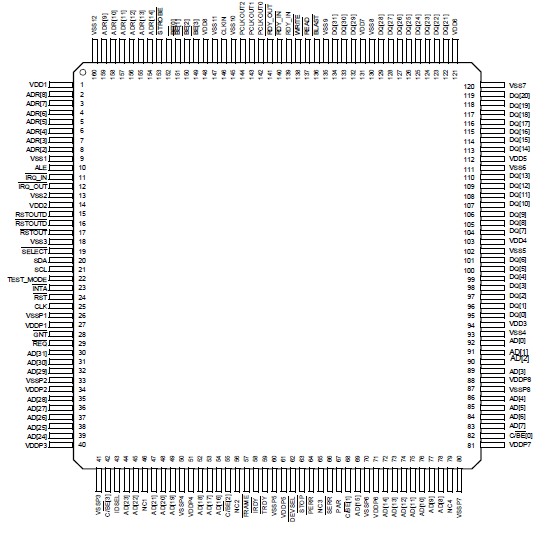

Pinout






Specifications

Storage Temperature .............................................................. 55°C to +125°C
Ambient Temperature Under Bias............................................... 40°C to +85°C
Power Dissipation ......................................................................................TBD W
Voltage on Any V_DD Pin Referenced to V_SS ................................. 0.5V to +4.0V
Voltage on Any Signal Pin Referenced to V_SS................................0.5V to +7.0V




Description

The CY7C09449PV is one of the PCI interface controllers in the Cypress Semiconductor PCI-DP™ family. The CY7C09449PV provides a PCI master/target interface with direct connections to many popular microprocessors. CY7C09449PV-AC provides 128K bits of dual-port SRAM that is used as shared memory between the local microprocessor and the PCI bus. An I2O message unit, complete with message queues and interrupt capability, CY7C09449PV-AC is also provided. The CY7C09449PV allows the designer to interface an application to the PCI bus in a straightforward, inexpensive way.
