CY7C09159AV

The CY7C09159AV and CY7C09169AV are high-speed synchronous CMOS 8K and 16K x 9 dual-port static RAMs. Two ports are provided, permitting independent, simultaneous access for reads and writes to any location in memory.[3] Registers on control, address, and data lines of CY7C09159AV allow for minimal setup and hold times. In pipelined output mode, data is registered for decreased cycle time. Clock to data valid tCD2 = 7.5 ns [1](pipelined). Flow-through mode can also be used to bypass the pipelined output register to eliminate access latency. In flow-through mode data will be available tCD1 = 18 ns after the address is clocked into the device. Pipelined output or flowthrough mode is selected via the FT/Pipe pin.

Each port of CY7C09159AV contains a burst counter on the input address register. The internal write pulse width is independent of the LOWto- HIGH transition of the clock signal. The internal write pulse is self-timed to allow the shortest possible cycle times.

A HIGH on CE₀ or LOW on CE₁ for one clock cycle will power down the internal circuitry to reduce the static power consumption. The use of multiple Chip Enables CY7C09159AV allows easier banking of multiple chips for depth expansion configurations. In the pipelined mode, one cycle is required with CE₀ LOW and CE₁ HIGH to reactivate the outputs.

Counter enable inputs of CY7C09159AV are provided to stall the operation of the address input and utilize the internal address generated by the internal counter for fast interleaved memory applications. A port's burst counter is loaded with the port's Address Strobe (ADS). When the port's Count Enable (CNTEN) is asserted, the address counter will increment on each LOW-to-HIGH transition of that port's clock signal. CY7C09159AV will read/write one word from/into each successive address location until CNTEN is deasserted. The counter of CY7C09159AV can address the entire memory array and will loop back to the start. Counter Reset (CNTRST) is used to reset the burst counter.

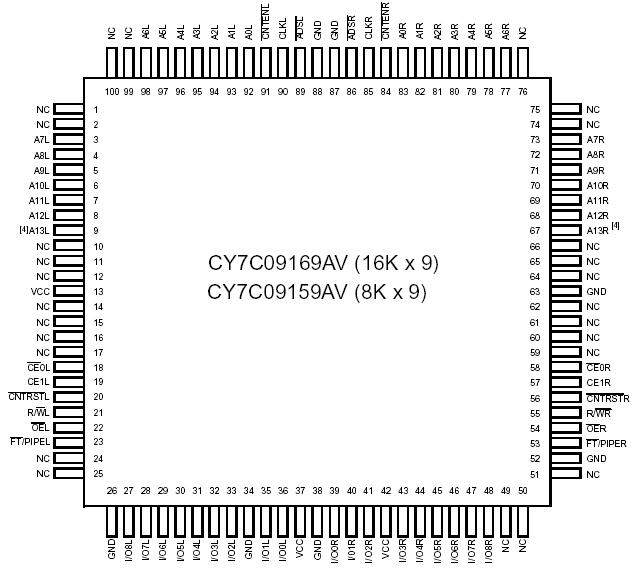

All parts of CY7C09159AV are available in 100-pin Thin Quad Plastic Flatpack (TQFP) packages.
