Features:

• True dual-ported memory cells which allow simultaneous access of the same memory location
• Six Flow-Through/Pipelined devices
-64K x 8/9 organizations (CY7C09089/189)
-128K x 8/9 organizations (CY7C09099/199)
• Three Modes
-Flow-Through
-Pipelined
-Burst
• Pipelined output mode on both ports allows fast 100- MHz cycle time
• 0.35-micron CMOS for optimum speed/power
• High-speed clock to data access 6.5[1]/7.5/9/12 ns (max.)
• Low operating power
-Active = 195 mA (typical)
-Standby = 0.05 mA (typical)
• Fully synchronous interface for easier operation
• Burst counters increment addresses internally
-Shorten cycle times
-Minimize bus noise
-Supported in Flow-Through and Pipelined modes
• Dual Chip Enables for easy depth expansion
• Automatic power-down
• Commercial and Industrial temperature ranges
• Available in 100-pin TQFP
• Pin-compatible and functionally equivalent to IDT70908 and IDT709089



Pinout

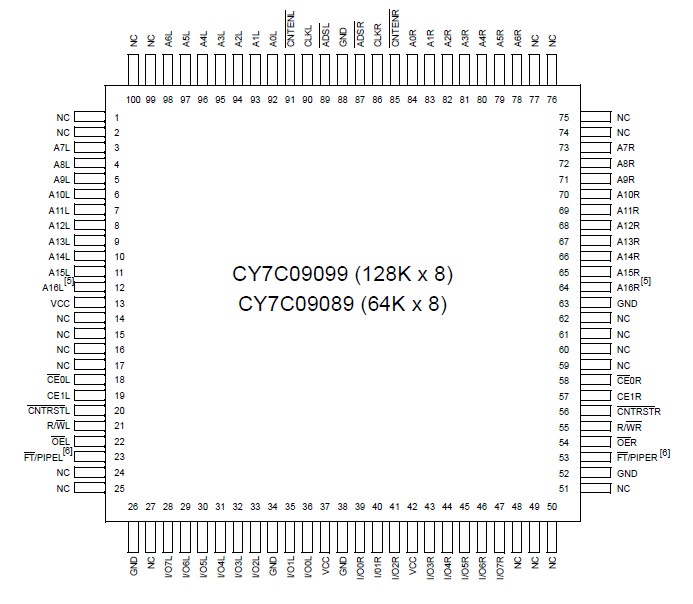

  Connection Diagram


Specifications

(Above which the useful life may be impaired. For user guidelines, not tested.)
Storage Temperature ............................. 65°C to +150°C
Ambient Temperature with Power Applied..55°C to +125°C
Supply Voltage to Ground Potential ............... 0.3V to +7.0V
DC Voltage Applied to
Outputs in High Z State ................................. 0.5V to +7.0V
DC Input Voltage............................................ 0.5V to +7.0V
Output Current into Outputs (LOW)............................. 20 mA
Static Discharge Voltage ........................................... >2001V
Latch-Up Current...................................................... >200mA



Description

The CY7C09089/99 and CY7C09189/99 are high-speed synchronous CMOS 64K and 128K x 8/9 dual-port static RAMs. Two ports of CY7C09089 are provided, permitting independent, simultaneous access for reads and writes to any location in memory.[4] Registers on control, address, and data lines allow for minimal setup and hold times. In pipelined output mode, data of CY7C09089  is registered for decreased cycle time. Clock to data valid tCD2 = 6.5 ns[1]  (pipelined). Flow-through mode can also be used to bypass the pipelined output register to eliminate access latency. In flow-through mode data of CY7C09089 will be available tCD1 = 15 ns after the address is clocked into the device. Pipelined output or flowthrough mode is selected via the FT/Pipe pin.

Each port of CY7C09089 a burst counter on the input address register. The internal write pulse width is independent of the LOW to- HIGH transition of the clock signal. The internal write pulse is self-timed to allow the shortest possible cycle times.

A HIGH on CE0 or LOW on CE1 for one clock cycle will power down the internal circuitry to reduce the static power consumption. The use of multiple Chip Enables allows easier banking of multiple chips for depth expansion configurations. In the pipelined mode, one cycle of CY7C09089  is required with CE0 LOW and CE1 HIGH to reactivate the outputs.

Counter CY7C09089 enable inputs are provided to stall the operation of the address input and utilize the internal address generated by the internal counter for fast interleaved memory applications. A port's burst counter is loaded with the port's Address Strobe (ADS). When the port's Count Enable (CNTEN) is asserted, the address counter CY7C09089 will increment on each LOW-to-HIGH transition of that port's clock signal. This will read/write one word from/into each successive address location until CNTEN is deasserted. The counter CY7C09089 can address the entire memory array and will loop back to the start. Counter Reset (CNTRST) is used to reset the burst counter.

All parts are available in 100-pin Thin Quad Plastic Flatpack (TQFP) packages.
