CY7C036AV

Features: • True dual-ported memory cells which allow simultaneous access of the same memory location• 4/8/16K * 16 organization (CY7C024AV/025AV/026AV)• 4/8K * 18 organization (CY7C0241AV/0251AV)• 16K * 18 organization (CY7C036AV)• 0.35-micron CMOS for optimum speed/...

product image

CY7C036AV Picture
See larger image
SeekIC No. : 004319632 Detail

CY7C036AV: Features: • True dual-ported memory cells which allow simultaneous access of the same memory location• 4/8/16K * 16 organization (CY7C024AV/025AV/026AV)• 4/8K * 18 organization (CY...

CY7C036AV Data Sheet

floor Price/Ceiling Price

Get Latest Price
Part Number:
CY7C036AV
Supply Ability:
5000

Price Break

  • Qty
  • 1~5000
  • Unit Price
  • Negotiable
  • Processing time
  • 15 Days
Total Cost: $ 0.00

SeekIC Buyer Protection PLUS - newly updated for 2013!

  • Escrow Protection.
  • Guaranteed refunds.
  • Secure payments.
  • Learn more >>

Month Sales

268 Transactions

Rating

evaluate  (4.8 stars)

Upload time: 2024/11/21

add to my favourite

Payment Methods

All payment methods are secure and covered by SeekIC Buyer Protection PLUS.

Notice: When you place an order, your payment is made to SeekIC and not to your seller. SeekIC only pays the seller after confirming you have received your order. We will also never share your payment details with your seller.
Product Details

Description



Features:

• True dual-ported memory cells which allow simultaneous access of the same memory location
• 4/8/16K * 16 organization (CY7C024AV/025AV/026AV)
• 4/8K * 18 organization (CY7C0241AV/0251AV)
• 16K * 18 organization (CY7C036AV)
• 0.35-micron CMOS for optimum speed/power
• High-speed access: 20 and 25 ns
• Low operating power
-Active: ICC = 115 mA (typical)
-Standby: ISB3 = 10 A (typical)
• Fully asynchronous operation
• Automatic power-down
• Expandable data bus to 32/36 bits or more using Master/Slave chip select when using more than one device
• On-chip arbitration logic
• Semaphores included to permit software handshaking between ports
• INT flag for port-to-port communication
• Separate upper-byte and lower-byte control
• Pin select for Master or Slave
• Commercial and industrial temperature ranges
• Available in 100-pin Lead (Pb)-free TQFP and 100-pin TQFP

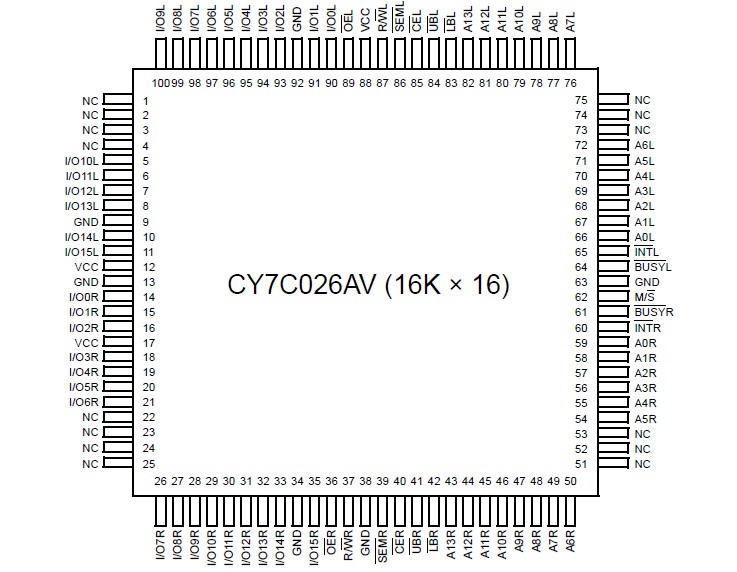

Pinout

Connection Diagram




Specifications

(Above which the useful life may be impaired. For user guidelines, not tested.)
Storage Temperature ............................65°C to +150°C
Ambient Temperature with
Power Applied.........................................55°C to +125°C
Supply Voltage to Ground Potential ............... 0.5V to +4.6V
DC Voltage Applied to
Outputs in High-Z State..........................0.5V to VCC + 0.5V
DC Input Voltage[14] .............................0.5V to VCC + 0.5V
Output Current into Outputs (LOW)............................. 20 mA
Static Discharge Voltage.......................................... > 2001V
Latch-up Current.................................................... > 200 mA
