CY74FCT163373

Features:

• Low power, pin-compatible replacement for LCX and LPT families
• 5V tolerant inputs and outputs
• 24 mA balanced drive outputs
• Power-off disable outputs permits live insertion
• Edge-rate control circuitry for reduced noise
• FCT-C speed at 4.2 ns
• Latch-up performance exceeds JEDEC standard no. 17
• Typical output skew < 250 ps
• Industrial temperature range of 40°C to +85°C
• TSSOP (19.6-mil pitch) or SSOP (25-mil pitch)
• TypicalVolp (ground bounce) performance exceeds Mil Std 883D
• V_CC = 2.7V to 3.6V
• ESD (HBM) > 2000V

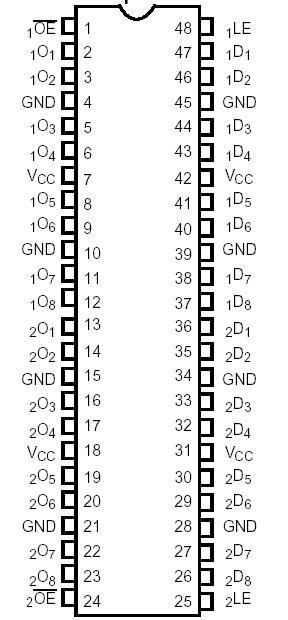

Pinout




Specifications

Storage Temperature ........................................................-55°C to +125°C
Ambient Temperature with Power Applied .........................-55°C to +125°C
Supply Voltage Range ............................................................... 0.5V to +4.6V
DC Input Voltage .......................................................................-0.5V to +7.0V
DC Output Voltage .....................................................................-0.5V to +7.0V
DC Output Current (Maximum Sink Current/Pin) .......................-60 to +120 mA
Power Dissipation .....................................................................................1.0W


Description

CY74FCT163373 is a 16-bit, D-type latch, designed for use in bus applications requiring high speed and low power. It can either be used as two independent 8-bit latches, or as a single 16-bit latch by connecting the Output Enable (OE ) and Latch (LE ) inputs. The outputs of CY74FCT163373 are 24-mA balanced output drivers with current limiting resistors to reduce the need for external terminating resistors and provide for minimal undershoot and reduced ground bounce. Flow-through pinout and small shrink packaging aid in simplifying board layout.

The CY74FCT163373 is designed with inputs and outputs capable of being driven by 5.0V buses, allowing its use in mixed voltage systems as a translator. The outputs are also designed with a power off disable feature enabling its use in applications requiring live insertion.
