CY62256V

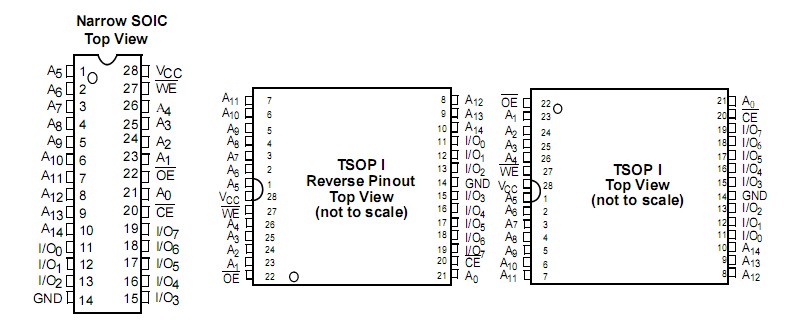

The CY62256V family is composed of two high-performance CMOS static RAM's organized as 32K words by 8 bits. Easymemory expansion is provided by an active LOW chip enable(CE ) and active LOW output enable (OE ) and three-state drivers. CY62256V has an automatic power-down feature, reducing the power consumption by over 99% when deselected.

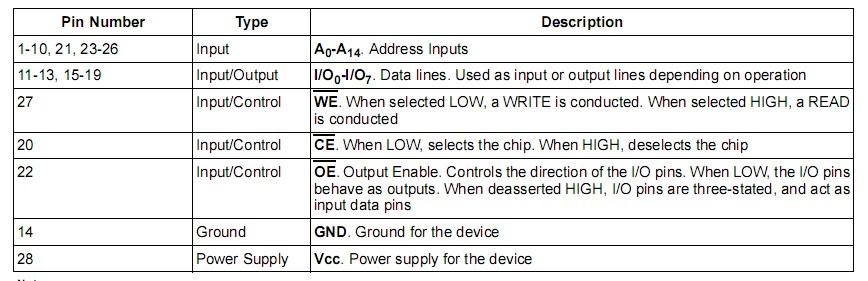

An active LOW write enable signal (WE ) controls the writing/reading operation of the memory. When CE  and WE \inputs are both LOW, data on the eight data input/output pins (I/O₀  through I/O₇) is written into the memory location addressed by the address present on the address pins (A0through A14). Reading the CY62256V is accomplished by selecting
the device and enabling the outputs, CE and OE active LOW, while WE  remains inactive or HIGH. Under these conditions, the contents of the location addressed by the information on
address pins are present on the eight data input/output pins.

The input/output pins of CY62256V remain in a high-impedance state unless the chip is selected, outputs are enabled, and write enable(WE ) is HIGH.
