CY62146V18 MoBL2

The CY62146V and CY62146V18 are high-performance CMOS static RAMs organized as 262,144 words by 16 bits.

CY62146V and CY62146V18 feature advanced circuit design to provide ultra- low active current. This is ideal for providing More Battery Life™ (MoBL™) in portable applications such as cellular telephones.

The CY62146V and CY62146V18 also has an automatic power-down feature that significantly reduces power consumption by 99% when addresses are not toggling. The CY62146V and CY62146V18 can also be put into standby mode when deselected (CE HIGH). The input/ output pins (I/O₀ through I/O₁₅) are placed in a high-impedance state when: deselected (CE HIGH), outputs are disabled (OE HIGH), BHE and BLE are disabled (BHE, BLEHIGH), or during a write operation (CE LOW, and WE LOW).

Writing to the CY62146V and CY62146V18 is accomplished by taking Chip Enable (CE) and Write Enable (WE) inputs LOW. If Byte Low Enable (BLE) is LOW, then data from I/O pins (I/O₀ through I/O₇), is written into the location specified on the address pins (A0 through A₁₆). If Byte High Enable (BHE) is LOW, then data from I/O pins (I/O₈ through I/O₁₅) is written into the location specified on the address pins (A₀ through A₁₇).

Reading from the CY62146V and CY62146V18 is accomplished by taking Chip Enable (CE) and Output Enable (OE) LOW while forcing the Write Enable (WE) HIGH. If Byte Low Enable (BLE) is LOW, then data from the memory location specified by the address pins will appear on I/O₀ to I/O₇. If Byte High Enable (BHE) is LOW, then data of CY62146V and CY62146V18 from memory will appear on I/O₈ to I/O₁₅. See the truth table at the back of this data sheet for a complete description of read and write modes.

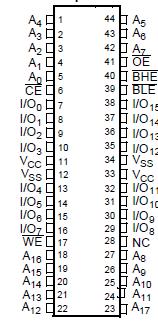

The CY62146V and CY62146V18 are available in 48-Ball FBGA and standard 44-Pin TSOP Type II (forward pinout) packaging.
