CY62146V

Features:

• Wide voltage range: 2.7V3.6V
• Ultra-low active, standby power
• Easy memory expansion with CE and OE features
• TTL-compatible inputs and outputs
• Automatic power-down when deselected
• CMOS for optimum speed/power
• Package available in a standard 44-Pin TSOP Type II (forward pinout) package

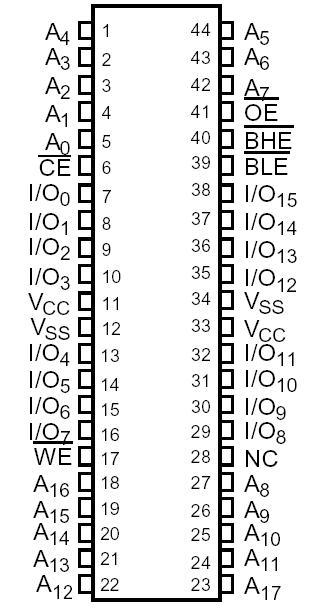

Pinout




Specifications

Storage Temperature ........................................................................65°C to +150°C
Ambient Temperature with Power Applied..........................................55°C to +125°C
Supply Voltage to Ground Potential ......................................................... 0.5V to +4.6V
DC Voltage Applied to Outputs in High-Z State^[2] .............................0.5V to VCC + 0.5V
DC Input Voltage^[2]............................................................................0.5V to VCC + 0.5V
Output Current into Outputs (LOW).......................................................................... 20 mA
Static Discharge Voltage......................................................................................... >2001V
(per MIL-STD-883, Method 3015)Latch-up Current............................................... >200 mA


Description

The CY62146V is a high-performance CMOS static RAM organized as 256K words by 16 bits. These devices feature advanced circuit design to provide ultra-low active current.

CY62146V is ideal for providing More Battery Life® (MoBL®) in portable applications such as cellular telephones. The device also has an automatic power-down feature that significantly reduces power consumption by 99% when addresses are not toggling. The CY62146V can also be put into standby mode when deselected (CE HIGH). The input/output pins (I/O0 through I/O15) are placed in a high-impedance state when: deselected (CE HIGH), outputs are disabled (OE HIGH), BHE and BLE are disabled (BHE, BLE HIGH), or during a write operation (CE LOW, and WE LOW).

Writing to the CY62146V is accomplished by taking Chip Enable (CE) and Write Enable (WE) inputs LOW. If Byte Low Enable (BLE) is LOW, then data from I/O pins (I/O0 through I/O7), is written into the location specified on the address pins (A0 through A16). If Byte High Enable (BHE) is LOW, then data of CY62146V from I/O pins (I/O8 through I/O15) is written into the location specified on the address pins (A0 through A17).

Reading from the CY62146V is accomplished by taking Chip Enable (CE) and Output Enable (OE) LOW while forcing the Write Enable (WE) HIGH. If Byte Low Enable (BLE) is LOW, then data from the memory location specified by the address pins of CY62146V will appear on I/O0 to I/O7. If Byte High Enable (BHE) is LOW, then data from memory will appear on I/O8 to I/O15. See the truth table at the back of this data sheet for a complete description of read and write modes.
