Features: • Very high speed: 45 ns
• Wide voltage range: 2.2V to 3.6V
• Pin compatible with CY62127BV
• Ultra-low active power
- Typical active current: 0.85 mA @ f = 1 MHz
- Typical active current: 5 mA @ f = fMAX
• Ultra-low standby power
• Easy memory expansion with CE and OE features
• Automatic power-down when deselected
• Packages offered in a 48-ball FBGA and a 44-lead TSOP Type II

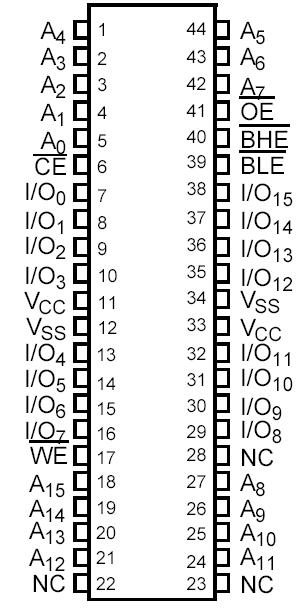

• Also available in Lead-Free 48-ball FBGA, and 44-lead TSOP Type II packagesPinoutSpecificationsStorage Temperature ..........................................................65°C to +150°C
Ambient Temperature with Power Applied............................55°C to +125°C
Supply Voltage to Ground Potential............................................... −0.3V to 3.9V
DC Voltage Applied to Outputs in High-Z State[5] ...............−0.3V to VCC + 0.3V
DC Input Voltage[5] ............................................................−0.3V to VCC + 0.3V
Output Current into Outputs (LOW).......................................................... 20 mA
Static Discharge Voltage........................................................................ > 2001V
(per MIL-STD-883, Method 3015) Latch-up Current.............................. > 200 mADescriptionThe CY62127DV30 is a high-performance CMOS static RAM organized as 64K words by 16 bits. This device features advanced circuit design to provide ultra-low active current.
This is ideal for providing More Battery Life™ (MoBL®) CY62127DV30 in portable applications such as cellular telephones. The device also has an automatic power-down feature that significantly reduces power consumption by 90% when addresses are not toggling. The device can be put into standby mode reducing power consumption by more than 99% when deselected (CE HIGH or both BHE and BLE are HIGH). The input/output pins (I/O0 through I/O15) are placed in a high-impedance state when: deselected (CE HIGH), outputs are disabled (OE HIGH), both Byte High Enable and Byte Low Enable are disabled (BHE, BLE HIGH) or during a write operation (CE LOW and WE LOW).
Writing to the CY62127DV30 is accomplished by taking Chip Enable (CE) and Write Enable (WE) inputs LOW. If Byte Low Enable (BLE) is LOW, then data from I/O pins (I/O0 through I/O7), is written into the location specified on the address pins (A0 through A15). If Byte High Enable (BHE) is LOW, then data from I/O pins (I/O8 through I/O15) is written into the location specified on the address pins (A0 through A15).
Reading from the CY62127DV30 is accomplished by taking Chip Enable (CE) and Output Enable (OE) LOW while forcing the Write Enable (WE) HIGH. If Byte Low Enable (BLE) is LOW, then data from the memory location specified by the address pins will appear on I/O0 to I/O7. If Byte High Enable (BHE) is LOW, then data from memory will appear on I/O8 to I/O15. See the truth table at the back of this data sheet for a complete description of read and write modes.
