Features:

• Function, pinout, and drive compatible with FCT and F logic
• FCT-C speed at 5.2 ns max. (Com'l)
   FCT-A speed at 6.5 ns max. (Com'l)
• Reduced VOH (typically = 3.3V) versions of equivalent FCT functions
• Edge-rate control circuitry for significantly improved noise characteristics
• Power-off disable feature
• Matched rise and fall times
• Fully compatible with TTL input and output logic levels
• ESD > 2000V
• Extended commercial range of −40˚C to +85˚C
• Sink Current             64 mA (Com'l), 32 mA (Mil)
   Source Current        32 mA (Com'l), 12 mA (Mil)
• Edge-triggered D-type inputs
• 250 MHz typical toggle rate


Pinout

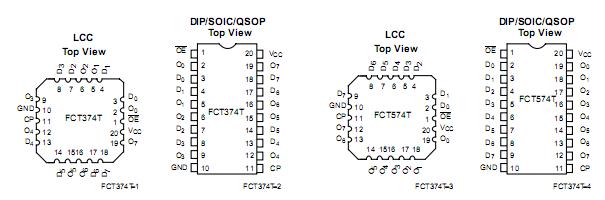

Connection Diagram




Specifications

Storage Temperature ..................................... -65°C to +150°C
Ambient Temperature with Power Applied..... 65°C to +135°C
Supply Voltage to Ground Potential .................... 0.5V to +7.0V
DC Input Voltage ................................................ 0.5V to +7.0V
DC Output Voltage...............................................0.5V to +7.0V
DC Output Current (Maximum Sink Current/Pin) .............. 120 mA
Power Dissipation .................................................................0.5W
Static Discharge Voltage....................................................>2001V
(per MIL-STD-883, Method 3015)


Description

The CY54FCT374T are high-speed low-power octal D-type flip-flops featuring separate D-type inputs for each flip-flop. Both devices have three-state outputs for bus oriented applications. A buffered clock (CP) and output enable ( OE) are common to all flip-flops. The FCT574T is identical to FCT374T except for flow-through pinout to simplify board design. The eight flip-flops contained in the FCT374T and FCT574T will store the state of their individual D inputs that meet the set-up and hold time requirements on the LOW-to-HIGH clock (CP) transition.When OE is LOW, the contents of the eight flip-flops are available at the outputs.When OE is HIGH, the outputs will be in the high-impedance state.

The state of output CY54FCT374T enable does not affect the state of the flip-flops.The outputs are designed with a power-off disable feature to allow for live insertion of boards.
