Features: •In-System Reprogrammable™ (ISR™) CMOS CPLDs
-JTAG interface for reconfigurability
-Design changes do not cause pinout changes
-Design changes do not cause timing changes
•High density
-32 to 512 macrocells
-32 to 264 I/O pins
-Five dedicated inputs including four clock pins
•Simple timing model
-No fanout delays
-No expander delays
-No dedicated vs. I/O pin delays
-No additional delay through PIM
-No penalty for using full 16 product terms
-No delay for steering or sharing product terms
•3.3V and 5V versions
•PCI-compatible[1]
•Programmable bus-hold capabilities on all I/Os
•Intelligent product term allocator provides:
-0 to 16 product terms to any macrocell
-Product term steering on an individual basis
-Product term sharing among local macrocells
•Flexible clocking
-Four synchronous clocks per device
-Product term clocking
-Clock polarity control per logic block
•Consistent package/pinout offering across all densities
-Simplifies design migration
-Same pinout for 3.3V and 5.0V devices
•Packages
-44 to 400 leads in PLCC, CLCC, PQFP, TQFP, CQFP, BGA, and Fine-Pitch BGA packages

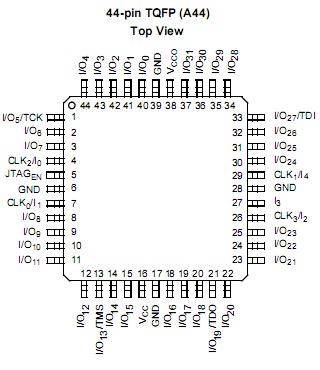

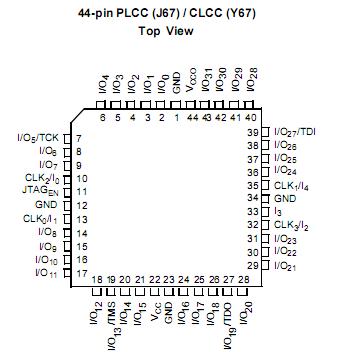

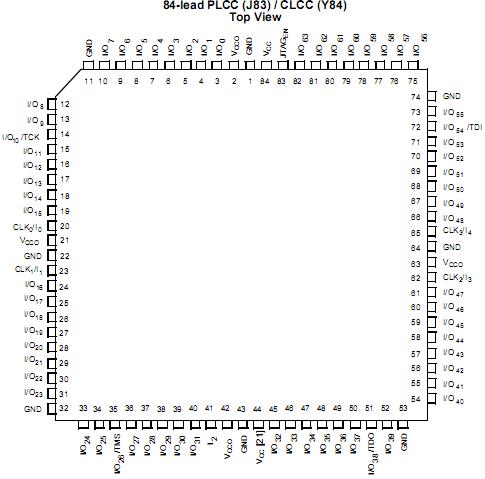

-Lead(Pb)-free packages availablePinout
Specifications(Above which the useful life may be impaired. For user guide-lines, not tested.)
Storage Temperature ..........................................................65°C to +150°C
Ambient Temperature with Power Applied...........................55°C to +125°C
Supply Voltage to Ground Potential...........................................0.5V to +7.0V
DescriptionThe CY3732VP100-200JXC family of CMOS CPLDs provides a range of high-density programmable logic solutions with unparalleled system performance. The Ultra37
000 family is designed to bring the flexibility, ease of use, and performance of the 22V10 to high-density CPLDs. The arch itecture is based on a number of logic blocks that are connected by a Programmable Inter-connect Matrix (PIM). Each logic block features its own product term array, product term allocator, and 16 macrocells.The PIM distributes signals from the logic block outputs and all input pins to the logic block inputs.
All of the CY3732VP100-200JXC devices are electrically erasable and In-System Reprogrammable (ISR), which simplifies both design and manufacturing flows, thereby reducing costs. The ISR feature provides the ability to reconfigure the devices without having design changes cause pinout or timing changes. The Cypress ISR function is implemented through a JTAG-compliant serial interface. Data is shifted in and out through the TDI and TDO pins, respectively. Because of the superior routability and simple timing model of the Ultra37000 devices, ISR allows users to change existing logic designs while simultaneously fixing pinout assignments and maintaining system performance.
The CY3732VP100-200JXC features JTAG for ISR and boundary scan, and is compatible with the PCI Local Bus specification, meeting the electrical and timing requirements. The Ultra37000 family features user programmable bus-hold capabilities on all I/Os.
CY3732VP100-200JXC Data Sheet
