CY29972

Features: • Output frequency up to 125 MHz• 12 Clock outputs: frequency configurable• 350 ps max. output-to-output skew• Configurable output disable• Two reference clock inputs for dynamic toggling• Oscillator or crystal reference input• Spread-spectrum-co...

product image

CY29972 Picture
See larger image
SeekIC No. : 004319276 Detail

CY29972: Features: • Output frequency up to 125 MHz• 12 Clock outputs: frequency configurable• 350 ps max. output-to-output skew• Configurable output disable• Two reference cloc...

CY29972 Data Sheet

floor Price/Ceiling Price

Get Latest Price
Part Number:
CY29972
Supply Ability:
5000

Price Break

  • Qty
  • 1~5000
  • Unit Price
  • Negotiable
  • Processing time
  • 15 Days
Total Cost: $ 0.00

SeekIC Buyer Protection PLUS - newly updated for 2013!

  • Escrow Protection.
  • Guaranteed refunds.
  • Secure payments.
  • Learn more >>

Month Sales

268 Transactions

Rating

evaluate  (4.8 stars)

Upload time: 2024/5/31

add to my favourite

Payment Methods

All payment methods are secure and covered by SeekIC Buyer Protection PLUS.

Notice: When you place an order, your payment is made to SeekIC and not to your seller. SeekIC only pays the seller after confirming you have received your order. We will also never share your payment details with your seller.
Product Details

Description



Features:

• Output frequency up to 125 MHz
• 12 Clock outputs: frequency configurable
• 350 ps max. output-to-output skew
• Configurable output disable
• Two reference clock inputs for dynamic toggling
• Oscillator or crystal reference input
• Spread-spectrum-compatible
• Glitch-free output clocks transitioning
• 3.3V power supply
• Pin-compatible with MPC972
• Industrial temperature range: 40°C to +85°C
• 52-pin TQFP package

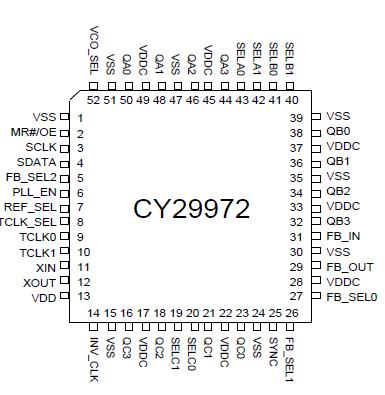

Pinout

Connection Diagram


Specifications

Maximum input voltage relative to VSS: ............... VSS 0.3V
Maximum input voltage relative to VDD: ...............VDD + 0.3V
Storage temperature: ..........................65 * C to +150 * C
Operating temperature:..........................40 * C to +85 * C
Maximum ESD protection ..................................................2kV
Maximum power supply: ..................................................5.5V
Maximum input current: ..............................................±20 mA
