Product Details

Description



Features:

• 2.5V or 3.3V operation
• Output frequency up to 150MHz
• Supports PowerPC ® and Pentium® processors
• 21 clock outputs: drive up to 42 clock lines
• LVPECL or LVCMOS/LVTTL clock input
• Output-to-output skew < 150 ps
• Split 2.5V/3.3V outputs
• Spread-spectrum-compatible
• Glitch-free output clocks transitioning
• Output disable control
• Pin-compatible with MPC9600
• Industrial temperature range: 40°C to +85°C
• 48-pin TQFP package


Pinout

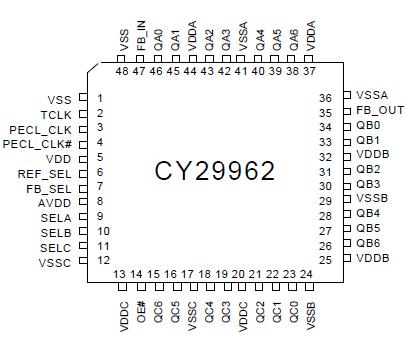

Connection Diagram


Specifications

Maximum Input Voltage Relative to VSS: ............. VSS 0.3V
Maximum Input Voltage Relative to VDD:.............VDD + 0.3V
Storage Temperature: .............................65°C to + 150°C
Operating Temperature: .............................40°C to +85°C
Maximum ESD protection ............................................... 2 kV
Maximum Power Supply: ................................................5.5V
Maximum Input Current:............................................±20 mA
