Features:

• 2.5V or 3.3V operation
• 200-MHz clock support
• LVPECL or LVCMOS/LVTTL clock input
• LVCMOS-/LVTTL-compatible outputs
• 15 clock outputs: drive up to 30 clock lines
• 1X and 1/2X configurable outputs
• Output three-state control
• 350 ps max. output-to-output skew
• Pin compatible with MPC949, MPC9449
• Available in Commercial and Industrial temp. range
• 52-pin TQFP package



Pinout

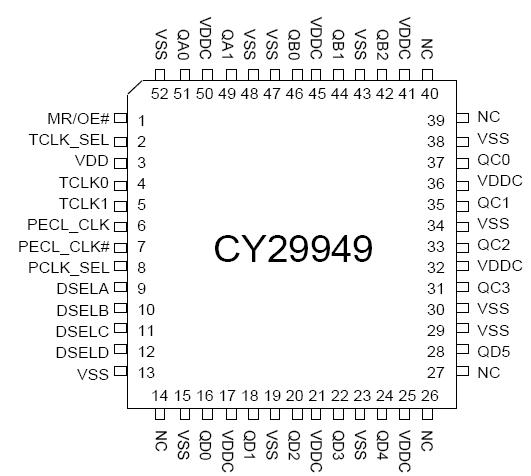

  Connection Diagram


Specifications

Maximum Input Voltage Relative to VSS: ............... VSS 0.3V
Maximum Input Voltage Relative to VDD: ...............VDD + 0.3V
Storage Temperature: ................................65°C to + 150°C
Operating Temperature: ................................40°C to +85°C
Maximum ESD Protection....................................................2 kV
Maximum Power Supply: ...................................................5.5V
Maximum Input Current: ..............................................±20 mA
This device contains circuitry to protect the inputs against
damage due to high static voltages or electric field; however,
precautions should be taken to avoid application of any
voltage higher than the maximum rated voltages to this circuit.
For proper operation, Vin and Vout should be constrained to the
range:
VSS < (Vin or Vout) < VDD
Unused inputs must always be tied to an appropriate logic
voltage level (either VSS or VDD).



Description

The CY29949 is a low-voltage 200-MHz clock distribution buffer with the capability to select either a differential LVPECL or LVCMOS/LVTTL compatible input clocks. These clock sources can be used to provide for test clocks as well as the primary system clocks. All other control inputs are LVCMOS/LVTTL compatible. The 15 outputs are LVCMOS or LVTTL compatible and can drive 50 series or parallel terminated transmission lines. For series terminated transmission lines, each output can drive one or two traces giving the device an effective fanout of 1:30.

The CY29949 is capable of generating 1X and 1/2X signals from a 1X source. These signals are generated and retimed internally to ensure minimal skew between the 1X and 1/2X signals. SEL(A:D) inputs allow flexibility in selecting the ratio of 1X to1/2X outputs.

The CY29949 outputs can also be three-stated via the MR/OE# input. When MR/OE# is set HIGH, it resets the internal flip-flops and three-states the outputs.
